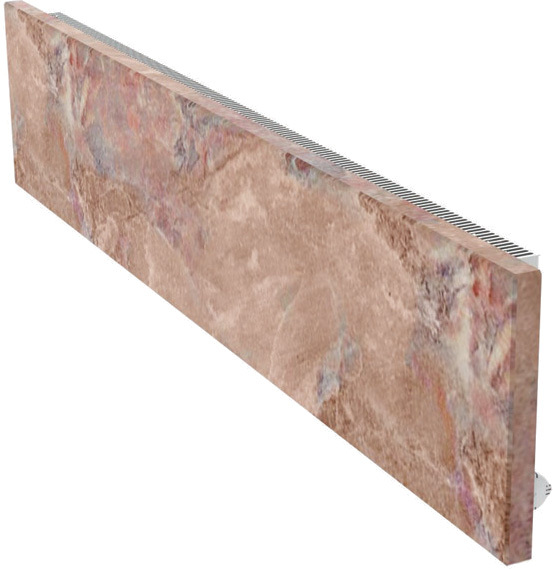

Special convectors
What are convectors?
Heating convectors are heating bodies intended for installation in interiors (floor, window sill, bases etc.).
How convector works?
Convectors have a finned tube heat exchanger located in a stainless-steel trough. Convectors are supplied in the following designs: with fan (forced convection) or without fan (natural convection).
- We are able to produce curved or angle-connected convectors thanks to modern production technology.
-
We use energy-saving DC 12V fan motors with extremely low consumption of el. energy.
E.g., the average consumption of el. energy is 2 to 3 W per 1m of the MINIB convector length.
COIL – PS 280
- visible front panel from aluminium composite
- wall convector with radiation element
394 W/m
COIL – GS 280
- visible front panel from glass
- wall convector with radiation element
407 W/m
COIL – KZ 60
- fan assisted convector
- built-in convector designed for installation into the wall
- heating of dry interiors
609 W/m
COIL – DS 275
- wall convector that combines the advantages of convection and radiation
- heating of dry and wet interiors
302 W/m
COIL – DS 400
- wall convector that combines the advantages of convection and radiation
- heating of dry and wet interiors
513 W/m
COIL - KZ 91
- fan assisted convector
- built-in convector designed for installation into the wall
- heating of dry interiors
1 358 W/m
COIL – PS 360
- visible front panel from aluminium composite
- wall convector with radiation element
518 W/m
COIL - PS 480
- visible front panel from aluminium composite
- wall convector with radiation element
606 W/m
COIL - GS 360
- visible front panel from glass
- wall convector with radiation element
513 W/m
COIL - GS 480
- visible front panel from glass
- wall convector with radiation element
- designed for installation on the wall of the room
- heating of dry interiors
- convector is equipped with a thermostatic head
- possibility of design modification – a wide range of colours, sand-blasting of patterns (all to special request)
591 W/m
COIL – TE
- electrical heating of dry interiors
- electric direct heating convector with 230 V fan
- electrical cover protection IP20
1 500 W/m
COIL – SK
- heating for kitchen and hall interiors
- not designed for mounting into the floor but for skirting or kick space mounting
371 W
COIL – KP
- heating output higher than 2.3 kW for 1.5 m long convector
- heating of dry interiors
1 098 W/m
COIL – NK1
- wall convector with the fan
- designed for installation on the wall of the room
- for heating dry interiors
- equipped with the thermostatic head.
1 085 W/m
COIL – SK1
- self-standing convector with the fan
- for heating dry interiors
- equipped with the thermostatic head.
1 085 W/m
COIL – NK2
- wall convector with the fan
- designed for installation on the wall
- of the room
- for heating dry interiors
- equipped with the thermostatic head.
1 547 W/m
COIL – SK2
- self-standing convector with the fan
- for heating dry interiors
- equipped with the thermostatic head.
1 547 W/m
COIL – LP
- Minib heating bench with heat output higher than 1.3 kW for 1 m long convector
- for heating dry and wet environments
1 331 W/m
COIL – DP
- for heating dry interiors
- easthetic all wood self-standing convector
- medium heat output from natural convection
607 W/m
COIL – NU1
- MINIB wall convector with a width of only 116 mm
- only for heating of dry environments
- equipped with the thermostatic head.
537 W/m
COIL – NU2
- MINIB wall convector with a width of only 116 mm
- only for heating of dry environments
- equipped with the thermostatic head.
695 W/m
COIL – SU1
- self-standing floor convector with a width of only 116 mm
- only for heating of dry environments
- equipped with the thermostatic head.
533 W/m
COIL – SU2
- self-standing floor convector with a width of only 116 mm
- only for heating of dry environments
- equipped with the thermostatic head.
681 W/m
COIL – NP1/4
- MINIB wall convector with a width of 156 mm
- only for heating of dry environments
- high heat output of the convector without the fan
- equipped with the thermostatic head.
743 W/m
COIL – NP2/4
- MINIB wall convector with a width of 156 mm
- only for heating of dry environments
- high heat output of the convector without the fan
- equipped with the thermostatic head.
1 041 W/m
COIL – SP0
- self-standing convector with a width of 156 mm
- only for heating of dry environments
- equipped with the thermostatic head.
374 W/m
COIL – SP1/4
- MINIB self-standing convector with a width of 156 mm
- only for heating of dry environments
- high heat output of the convector without the fan
611 W/m
COIL – SP2/4
- MINIB self-standing convector with a width of 156 mm
- only for heating of dry environments
- high heat output of the convector without the fan
1 034 W/m
COIL – SW250
- MINIB self-standing convector with a width of 232 mm
- only for heating of dry environments
- very high heat output of the convector without the fan
1 205 W/m
COIL – SW420
- MINIB self-standing convector with a width of 232 mm
- only for heating of dry environments
- very high heat output of the convector without the fan
- equipped with the thermostatic head.
1 476 W/m
COIL – NW170
- MINIB wall convector with a width of 232 mm
- only for heating of dry environments
- very high heat output of the convector without the fan
- equipped with the thermostatic head.
1 205 W/m
COIL – NW340
- MINIB wall convector with a width of 232 mm
- only for heating of dry environments
- very high heat output of the convector without the fan
- equipped with the thermostatic head.
1 477 W/m
COIL – SK PTG
- self-standing or wall MINIB convector with the fan
- equipped with the thermoelectric generator of el. energy
1 007 W/m
COIL – NK PTG
- self-standing or wall MINIB convector with the fan
- equipped with the thermoelectric generator of el. energy
- this convector does not require individual el. installation
1 007 W/m
