SLOTTED CHANNELS


  • can be used in a very wide spectrum of applications
  • can be used in conjunction with all types of paving and stones
  • also available with an asymmetric slot for facades

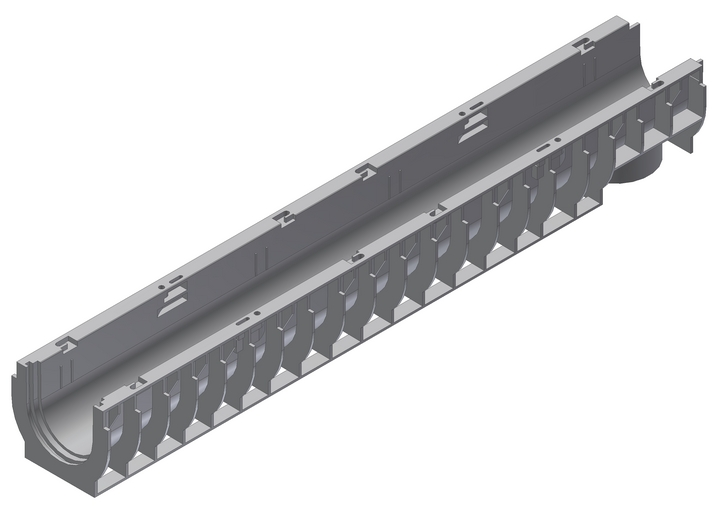

SLOTTED CHANNEL 100 - RECYFIX Channels
  Length mm Width mm Height mm Drainage cross-sect. cm² Weight kg Item No.
Type 01
 1000 160 131 92 2,1 40325
Type 010
 1000 160 181 142 3,0 7605
Other heights on request.


SLOTTED CHANNEL 100 - FASERFIX Channels
  Length mm Width mm Height mm Drainage cross-sect. cm² Weight kg Item No.
Type 01
 1000 160 140 89 29,0 6200
Type 010
 1000 160 194 143 38,0 6242
Type 0105
 500 160 140 89 15,0 6249

Channels with built-in fall on request.



Gratings

SLOTTED CHANNEL 100 - Slotted covers, neck height 100, class A 15
  Length mm Width mm Height mm Intake cross-sect. cm²/m Weight kg Item No. Galvanised Item No. Stainless steel
symmetric
 1000 160 128 125 4,6 5715 5765
symmetric
 500 160 128 125 2,2 5716 5766
asymmetric
 1000 160 128 125 4,6 5615 5665
asymmetric
 500 160 128 125 3,1 5616 5666
The slotted covers will be modified to a width of 160 mm (like the covers in class C 250 and D 400). This will be done step by step.
Bigger NW and individual neck heights available as special construction for orders bigger than 30 m.
The quality of the stainless steel material is according CNS 1.4301.

SLOTTED CHANNEL 100 - Slotted covers, neck height 160, class C 250
  Length mm Width mm Height mm Intake cross-sect. cm²/m Weight kg Item No. Galvanised Item No. Stainless steel
symmetric
 1000 160 188 125 8,2 5721 5771
symmetric
 500 160 188 125 4,1 5722 5772
asymmetric
 1000 160 188 125 8,2 5725 5775
asymmetric
 500 160 188 125 4,1 5726 5776
Larger NW and individual neck heights available as special construction for orders bigger 30 m.
The quality of the stainless steel material is according CNS 1.4301.

SLOTTED CHANNEL 100 - Slotted covers, neck height 200, class D 400*
  Length mm Width mm Height mm Intake cross-sect. cm²/m Weight kg Item No. Galvanised Item No. Stainless steel
symmetric
 1000 160 204 180 17,5 5821 5871
symmetric
 500 160 204 180 8,8 5822 5872
symmetric
 1000 160 204 180 18,2 5825 5875
asymmetric
 500 160 204 180 9,2 5826 5876

* Not for use across the carriageway of highways or motorways in moving traffic.
Larger NW and individual neck heights available as special construction for orders bigger 30 m.
The quality of the stainless steel material is according CNS 1.4301.
