Saw

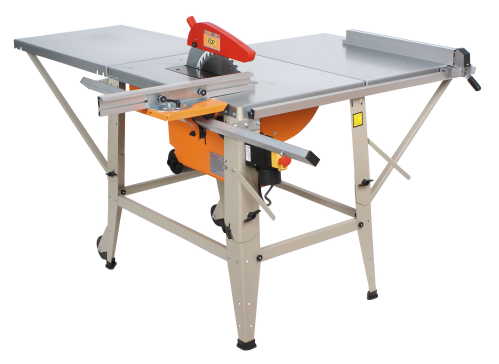

KDR 101 - Table circular saw
CIRCULAR SAW KDR 101 is intended for hobby, craftsmen and builders. Basic machine includes: precise and stepless height and angle adjustment (90°-45°), small sliding table with small tilting fence, rip fence, table extension behind and on the right side of the saw blade and wheels for moving.
KDR 101 - Technical data
| Saw | |
| Motor power | 2,2 kW |
| Voltage / frequency | 230V / 50Hz |
| Speed of main saw blade spindle | 2 800/min. |
| Max. saw blade diameter | Ø 315 mm |
| Saw blade tilting | 90° - 45° |
| Max. width of cut | 1 100 mm |
| Max. length of cut | 1 100 mm |
| texttd(545) |
940 x 650 x 470 mm 835 x 60 x 595 mm 3 245 x 145 x 1 295 mm |
| Weight | 46 kg |
KDR 102 - Table circular saw
Thanks to the construction of this circular saw the customers will get a high accuracy machine. The CIRCULAR SAW KDR 102 is intended for demanding handymen or craftsmen.
Basic machine includes: precise and stepless height and angle adjustment (90°- 45°), professional Aluminium sliding table with tilting fence, rip fence with Aluminium profile and fine adjustment, wheels for moving – optional.
KDR 102 - Technical data
| Saw | |
| Motor power | 1,7 kW |
| Voltage / frequency | 230V / 50Hz |
| Speed of main saw blade spindle | 4 000/min. |
| Max. saw blade diameter | Ø 250 mm |
| Saw blade tilting | 90° - 45° |
| Max. width of cut | 600 mm |
| Max. length of cut | 600 mm |
| texttd(545) |
767 x 642 x 539 327 x 137 x 1 069 |
| Weight | 91 kg |
