Rope Hoists

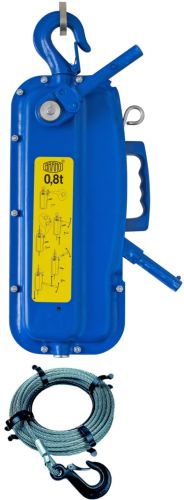

Rope hoist
Use:
Wide range of use particularly in construction, agriculture, forestry, transport, etc., for example:
- for lifting and towing loads in all directions
- for extricating items, demolishing buildings
- for putting up posts, installing electrical wiring, tensioning returnable rope car pulleys
- in logging
- for installation and manipulation work of all types
Properties:
- simple construction, portable
- the option of manipulating loads at various distances
- easy transport
- easy and safe use
- safety device against overloading
- long service life
- telescopic control lever
- fulfils the requirements of standard EN 13157
Hoists are supplied without a rope.
Ropes are supplied separately, coiled onto a rope drum. Choice of 10, 20, 30 and 40m rope lengths.
Longer ropes to order.
|
Type |
Type Lifting capacity |
Lifting 1) |
Operating |
Main dimensions (mm) |
Weight |
||||||
|
a |
b max |
c |
d |
d1 |
e |
e1 |
|||||
|
30-10 |
0,8 |
2 |
250 |
535 |
300 |
125 |
36 |
32 |
23,5 |
23,5 |
11,5 |
|
30-00 |
1,6 |
2 |
450 |
630 |
360 |
155 |
43 |
46 |
32,5 |
32,5 |
21,5 |
|
30-11 |
3,2 |
0,45 |
380 (B) |
680 |
410 |
140 |
28 |
64 |
47 |
45,5 |
33,5 |
|
1) Calculated on presumption 35 swings by lever per minute |
|||||||||||
RUČNÍ PÁKA
|
Lifting capacity (t) |
Main dimensions (mm) |
Weight (kg) |
||
|---|---|---|---|---|
|
d |
l |
L |
||
|
0,8 |
22 |
650 |
1100 |
2 |
|
1,6 |
29 |
730 |
1220 |
2,8 |
|
3,2 |
||||
ROPE WITH CARTRIDGE
|
Lifting capacity |
Ř of rope (mm) |
Rope length |
D |
Weight * |
|---|---|---|---|---|
|
Specification of rope |
||||
|
0,8 |
Ř 8 6x19 SFC 1770 BsZ |
10, 20, 30, 40 |
345 |
5,9 |
|
1,6 |
Ř 11 6x19 SFC 1770 BsZ |
10, 20, 30, 40 |
420 |
12 |
|
3,2 |
Ř 16 6x27 WSC 1770 BsZ |
10, 20, 30, 40 |
520 |
25 |
|
* Weight applies to rope of length 20m |
||||
