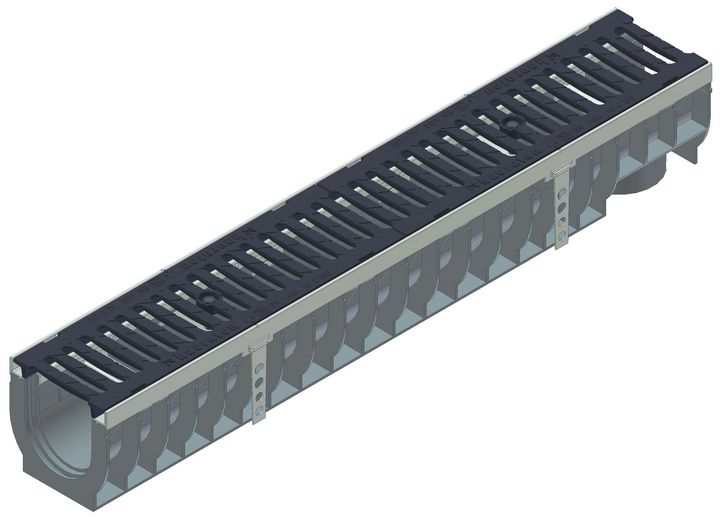

RECYFIX SUPER KS 100

RECYFIX SUPER KS 100

RECYFIX SUPER KS


  • Extremely light and robust
  • With boltless locking system SIDE-LOCK



RECYFIX SUPER KS 100 - Combi article, class C 250
  Length mm Width mm Height mm Drainage cross-sect. cm² Intake cross-sect. cm² Weight kg Item No. Galvanised Item No. Stainless steel
Type 01 with ductile iron grating, SW 14 mm
 1000 160 153 92 454 12,2 41167 41567
Type 01 with ductile iron grating, SW 6 mm
 1000 160 153 92 280 12,1 41169 41569
Type 0105 with ductile iron grating, SW 14 mm
 500 160 153 92 454 6,1 41130 41530
Type 0105 with ductile iron grating, SW 6 mm
 500 160 153 92 280 6,0 41131 41531
Type 010 with ductile iron grating SW 14 mm
 1000 160 203 144 454 12,3 41164 41564
Type 010 with ductile iron grating SW 6 mm
 1000 160 203 144 280 12,2 41165 41565
Type 01005 with ductile iron grating SW 14 mm
 500 160 203 144 454 6,2 41127 41527
Type 01005 with ductile iron grating SW 6 mm
 500 160 203 144 280 6,1 41128 41528



RECYFIX SUPER KS 100 - Combi article, class D 400
  Length mm Width mm Height mm Drainage cross-sect. cm² Intake cross-sect. cm² Weight kg Item No. Galvanised Item No. Stainless steel
Type 01 with ductile iron grating, SW 14 mm
 1000 160 153 92 454 12,5 41175 41575
Type 0105 with ductile iron grating, SW 14 mm
 500 160 153 92 454 6,4 41133 41533
Type 010 with ductile iron grating SW 14 mm
 1000 160 203 144 454 12,9 41163 41563
Type 01005 with ductile iron grating SW 14 mm
 500 160 203 144 454 6,4 41126 41526





RECYFIX SUPER KS 100 - Combi article, class E 600
  Length mm Width mm Height mm Drainage cross-sect. cm² Intake cross-sect. cm² Weight kg Item No. Galvanised Item No. Stainless steel
Type 01 with GUGI-ductile iron mesh grating, MW 20x30
 1000 160 153 92 426 15,1 41180 41580
Type 01 with ductile iron grating, SW 14 mm
 1000 160 153 92 454 13,5 41177 41577
Type 01 with ductile iron grating, SW 6 mm
 1000 160 153 92 280 13,7 41179 41579
Type 0105 with GUGI-ductile iron mesh grating, MW 20x30
 500 160 153 92 426 7,6 41135 41535
Type 0105 with ductile iron grating, SW 14 mm
 500 160 153 92 454 6,8 41136 41536
Type 0105 with ductile iron grating, SW 6 mm
 500 160 153 92 280 6,8 41137 41537
Type 010 with GUGI-Ductile iron mesh grating MW 20/30
 1000 160 203 144 426 15,4 41166 41566
Type 010 with ductile iron grating SW 14 mm
 1000 160 203 144 454 13,6 41176 41576
Type 010 with ductile iron grating SW 6 mm
 1000 160 203 144 280 13,8 41178 41578
Type 01005 with GUGI-Ductile iron mesh grating MW 20/30
 500 160 203 144 426 7,7 41125 41525
Type 01005 with ductile iron grating SW 14 mm
 500 160 203 144 454 6,8 41123 41523
Type 01005 with ductile iron grating SW 6 mm
 500 160 203 144 280 6,9 41124 41524



Accessories

RECYFIX SUPER KS 100 - Accessories
  Length mm Width mm Height mm Weight kg Item No. Galvanised Item No. Stainless steel
Trash box with ductile iron grating, SW 14 mm, class C 250
 500 160 438 8,5 41140 41540
Trash box with ductile iron grating, SW 6 mm, class C 250
 500 160 438 8,4 41141 41541
Trash box with ductile iron grating, SW 14 mm, class D 400
 500 160 438 8,8 41143 41543
Trash box with GUGI-ductile iron mesh grating, MW 20x30, class E 600
 500 160 438 10,0 41145 41545
Trash box with ductile iron grating, SW 14 mm, class E 600
 500 160 438 9,2 41146 41546
Trash box with ductile iron grating, SW 6 mm, class E 600
 500 160 438 9,2 41147 41547
Foul air trap DN 100, inside
 - - - 0,2 40290 -
Foul air trap, vertical, DN 100
 - - - 0,6 40295 -
End cap for type 01, galvanised
 - 160 160 0,3 41181 -
End cap, stainless steel
 - 160 160 0,3 41581 -
End cap made of PE-PP closed / with outlet DN 70/100 for type 010
 - 149 202 0,1 47093 -
Sealing material Sikaflex TS Fast, 600 ml, tubular bag, black
 - - - 0,6 6890 -
Tubular pistol for Sikaflex TS Fast
 - - - 1,3 6891 -
