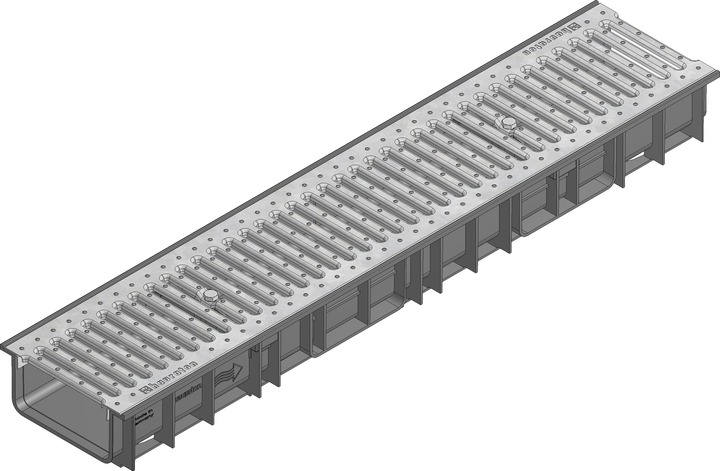

RECYFIX STANDARD 150
RECYFIX STANDARD
- made from recycled polypropylene making it environmentally friendly
- high resistance against frost and road salt
- very light which makes it quick and easy to install
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Intake cross-sect. cm² | Weight kg | Item No. | |
|
Type 100 with slotted grating, galvanised, locked
|
1000 | 210 | 100 | 116 | 390 | 4,6 | 40165 |
|
Type 01 with slotted grating, galvanised, locked
|
1000 | 210 | 192 | 225 | 390 | 5,2 | 40164 |
|
Type 0105 with slotted grating, galvanised
|
500 | 210 | 192 | 225 | 390 | 2,6 | 40147 |
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Intake cross-sect. cm² | Weight kg | Item No. | |
|
Type 100 with mesh grating MW 30/30, galvanised, locked
|
1000 | 210 | 100 | 116 | 1081 | 6,6 | 40135 |
|
Type 01 with mesh grating MW 30/30, galvanised, locked
|
1000 | 210 | 192 | 225 | 1081 | 7,7 | 40171 |
|
Type 0105 with mesh grating MW 30/30, galvanised, locked
|
500 | 210 | 192 | 225 | 1081 | 3,8 | 40146 |
|
Type 100 with mesh grating MW 30/10, galvanised, locked
|
1000 | 210 | 100 | 116 | 1098 | 7,8 | 40136 |
|
Type 01 with mesh grating MW 30/10, galvanised, locked
|
1000 | 210 | 192 | 225 | 1098 | 8,7 | 40177 |
|
Type 0105 with mesh grating MW 30/10, galvanised, locked
|
500 | 210 | 192 | 225 | 1098 | 4,5 | 40148 |
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Intake cross-sect. cm² | Weight kg | Item No. | |
|
Type 100 with GUGI-Ductile iron mesh grating MW 20/30, black, locked
|
1000 | 210 | 100 | 116 | 745 | 11,6 | 40141 |
|
Tyyp 01 with GUGI-Ductile iron mesh grating MW 20/30, black, locked
|
1000 | 210 | 192 | 225 | 745 | 13,5 | 40174 |
|
Type 0105 with GUGI-Ductile iron mesh grating MW 20/30, black, locked
|
500 | 210 | 192 | 225 | 745 | 6,0 | 40149 |
Accessories
| Length mm | Width mm | Height mm | Weight kg | Item No. | |
|
Trash box with galvanised bucket, with mesh grating MW 30/30, galvanised, class B125, locked
|
500 | 210 | 495 | 19,9 | 40154 |
|
Trash box with galvanised bucket, with mesh grating MW 30/10, galvanised, class B 125, locked
|
500 | 210 | 495 | 17,8 | 40156 |
|
Trash box with galvanised bucket with GUGI-Ductile iron mesh grating MW 20/30, black, class C 250, locked
|
500 | 210 | 495 | 19,6 | 40153 |
|
Foul air trap, vertical, DN 100
|
- | - | - | 0,6 | 40295 |
|
Foul air trap DN 100, inside
|
- | - | - | 0,2 | 40290 |
|
End cap closed, type 100
|
- | 210 | 100 | 0,1 | 40190 |
|
End cap combined made of PE-PP with outlet DN 70/100, Type 01
|
- | 210 | 202 | 0,1 | 40191 |
|
Drilling of connecting holes DN 150
|
- | - | - | 0,1 | 973 |
|
Cutting to length of NW 150
|
- | - | - | 0,1 | 991 |
|
Sealing material Sikaflex TS Fast, 600 ml, tubular bag, black
|
- | - | - | 0,6 | 6890 |
|
Tubular pistol for Sikaflex TS Fast
|
- | - | - | 1,3 | 6891 |
