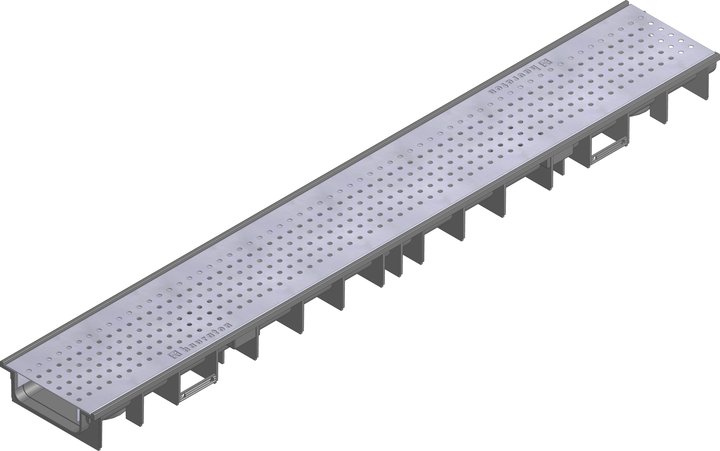

RECYFIX STANDARD 100
RECYFIX STANDARD
- made from recycled polypropylene making it environmentally friendly
- high resistance against frost and road salt
- very light which makes it quick and easy to install
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Intake cross-sect. cm² | Weight kg | Item No. Galvanised | Item No. Stainless steel | |
|
Type 60 with perforated grating "Elegance", stainless steel, locked*
|
1000 | 150 | 60 | 35 | 161 | 2,9 | - | 41244 |
|
Type 80 with perforated grating "Elegance", stainless steel, locked*
|
1000 | 150 | 80 | 55 | 161 | 3,1 | - | 41246 |
|
Type 01 with perforated grating "Elegance", stainless steel, locked
|
1000 | 160 | 135 | 92 | 161 | 4,5 | - | 41240 |
|
Type 010 with perforated grating "Elegance", stainless steel, locked
|
1000 | 150 | 185 | 142 | 161 | 5,4 | - | 41242 |
|
Type 0105 with perforated grating "Elegance", stainless steel, locked
|
500 | 160 | 135 | 92 | 161 | 2,3 | - | 41247 |
|
Type 01005 with perforated grating "Elegance", stainless steel, locked
|
500 | 150 | 185 | 142 | 161 | 2,7 | - | 41248 |
* For frequently used areas we recommend FASERFIX SUPER KS Channels shallow (see CIVILS).
The quality of the stainless steel material is according CNS 1.4301.
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Intake cross-sect. cm² | Weight kg | Item No. Galvanised | Item No. Stainless steel | |
|
Type 60 with slotted grating SW 9, locked*
|
1000 | 150 | 60 | 35 | 280 | 3,0 | 40236 | 41204 |
|
Type 80 with slotted grating SW 9, locked*
|
1000 | 150 | 80 | 55 | 280 | 3,1 | 40246 | 41206 |
|
Type 01 with slotted grating SW 9, locked
|
1000 | 160 | 135 | 92 | 280 | 4,4 | 40231 | 41200 |
|
Type 0105 with slotted grating SW 9, locked
|
500 | 160 | 135 | 92 | 280 | 2,2 | 40261 | 41207 |
|
Type 010 with slotted grating SW 9, locked
|
1000 | 150 | 185 | 142 | 280 | 5,3 | 40296 | 41202 |
|
Type 01005 with slotted grating SW 9, locked
|
500 | 150 | 185 | 142 | 280 | 2,6 | 40266 | 41208 |
|
Type 60 with slotted grating SW 6, galvanised, car traffic, locked
|
1000 | 150 | 60 | 35 | 155 | 2,8 | 40240 | 41205 |
|
Type 80 with slotted grating SW 6, galvanised, car traffic, locked
|
1000 | 150 | 80 | 55 | 155 | 3,0 | 40260 | 41211 |
|
Type 01 with slotted grating SW 6, galvanised, car traffic, locked
|
1000 | 160 | 135 | 92 | 155 | 4,5 | 40226 | 41201 |
|
Type 0105 with slotted grating SW 6, galvanised, car traffic, locked
|
500 | 160 | 135 | 92 | 155 | 2,2 | 40227 | 41213 |
|
Type 010 with slotted grating SW 6, galvanised, car traffic, locked
|
1000 | 150 | 185 | 142 | 155 | 5,4 | 40228 | 41203 |
|
Type 01005 with slotted grating SW 6, galvanised, car traffic, locked
|
500 | 150 | 185 | 142 | 155 | 2,7 | 40229 | 41215 |
|
Type 60 with mesh grating MW 30/10, locked*
|
1000 | 150 | 60 | 35 | 650 | 3,7 | 40237 | - |
|
Type 80 with mesh grating MW 30/10, locked*
|
1000 | 150 | 80 | 55 | 650 | 4,3 | 40247 | - |
|
Type 01 with mesh grating MW 30/10, locked
|
1000 | 160 | 135 | 92 | 650 | 5,2 | 40232 | - |
|
Type 0105 with mesh grating MW 30/10, locked
|
500 | 160 | 135 | 92 | 650 | 2,6 | 40262 | - |
|
Type 010 with mesh grating MW 30/10, locked
|
1000 | 150 | 185 | 142 | 650 | 6,6 | 40297 | - |
|
Type 01005 with mesh grating MW 30/10, locked
|
500 | 150 | 185 | 142 | 650 | 3,2 | 40267 | - |
* For frequently used areas we recommend FASERFIX SUPER KS Channels shallow (see CIVILS).
The quality of the stainless steel material is according CNS 1.4301.
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Intake cross-sect. cm² | Weight kg | Item No. Galvanised | Item No. Stainless steel | |
|
Type 60 with mesh grating MW 30/10, galvanised, locked*
|
1000 | 150 | 60 | 35 | 650 | 5,0 | 41224 | 41214 |
|
Type 80 with mesh grating MW 30/10, galvanised, locked*
|
1000 | 150 | 80 | 55 | 650 | 5,1 | 41226 | 41216 |
|
Type 01 with mesh grating MW 30/10, galvanised, locked
|
1000 | 160 | 135 | 92 | 650 | 5,2 | 41220 | 41210 |
|
Type 0105 with mesh grating MW 30/10, galvanised, locked
|
500 | 160 | 135 | 92 | 650 | 3,4 | 41227 | 41217 |
|
Type 010 with mesh grating MW 30/10, galvanised, locked
|
1000 | 150 | 185 | 142 | 650 | 6,6 | 41222 | 41212 |
|
Type 01005 with mesh grating MW 30/10, galvanised, locked
|
500 | 150 | 185 | 142 | 650 | 3,8 | 41228 | 41218 |
* For frequently used areas we recommend FASERFIX SUPER KS Channels shallow (see CIVILS).
The quality of the stainless steel material is according CNS 1.4301.
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Intake cross-sect. cm² | Weight kg | Item No. | |
|
Type 60 with GUGI-Ductile iron mesh grating MW 20/30, black, locked*
|
1000 | 150 | 60 | 35 | 444 | 5,4 | 40239 |
|
Type 80 with GUGI-Ductile iron mesh grating MW 20/30, black, locked*
|
1000 | 150 | 80 | 55 | 444 | 5,5 | 40253 |
|
Type 60 with ductile iron grating SW 14, black, locked*
|
1000 | 150 | 60 | 35 | 450 | 5,8 | 40238 |
|
Type 60 with ductile iron grating, black, SW 6 mm, locked
|
1000 | 150 | 60 | 35 | 290 | 7,6 | 41234 |
|
Type 80 with ductile iron gating SW 14, black, locked*
|
1000 | 150 | 80 | 55 | 450 | 5,9 | 40248 |
|
Type 80 with ductile iron grating, black, SW 6 mm, locked
|
1000 | 150 | 80 | 55 | 290 | 7,7 | 41236 |
|
Type 01 with GUGI-Ductile iron mesh grating MW 20/30, black, locked
|
1000 | 160 | 135 | 92 | 444 | 7,7 | 40234 |
|
Type 01 with GUGI-Ductile iron mesh grating MW 20/30, KTL, locked
|
1000 | 160 | 135 | 92 | 444 | 7,7 | 40225 |
|
Type 0105 with GUGI-Ductile iron mesh grating MW 20/30, black, locked
|
500 | 160 | 135 | 92 | 444 | 3,8 | 40264 |
|
Type 010 with GUGI-Ductile iron mesh grating MW 20/30, black, locked
|
1000 | 150 | 185 | 142 | 444 | 8,6 | 40299 |
|
type 010 with GUGI-Ductile iron mesh grating MW 20/30, KTL, locked
|
1000 | 150 | 185 | 142 | 444 | 8,5 | 40224 |
|
Type 01005 with GUGI-Ductile iron mesh grating MW 20/30, black, locked
|
500 | 150 | 185 | 142 | 444 | 4,2 | 40269 |
|
Type 01 with ductile iron grating SW 14, black, locked
|
1000 | 160 | 135 | 92 | 450 | 8,2 | 40233 |
|
Type 01 with ductile iron grating, SW 14, KTL, locked
|
1000 | 160 | 135 | 92 | 450 | 8,4 | 41260 |
|
Type 01 with ductile iron grating, SW 6 mm, locked
|
1000 | 160 | 135 | 92 | 290 | 9,2 | 41230 |
|
Type 0105 with ductile iron grating SW 14, black, locked
|
500 | 160 | 135 | 92 | 450 | 4,1 | 40263 |
|
Type 0105 with ductile iron grating, SW 14, KTL, locked
|
500 | 160 | 135 | 92 | 454 | 4,2 | 41263 |
|
Type 0105 with ductile iron grating, black, SW 6 mm, locked
|
500 | 160 | 135 | 92 | 290 | 4,6 | 41237 |
|
Type 010 with ductile iron grating SW 14, black, locked
|
1000 | 150 | 185 | 142 | 450 | 9,1 | 40298 |
|
Type 010 with ductile iron grating, SW 6 mm, locked
|
1000 | 150 | 185 | 142 | 290 | 10,1 | 41232 |
|
Type 01005 with ductile iron grating SW 14, black, locked
|
500 | 150 | 185 | 142 | 450 | 4,5 | 40268 |
|
Type 01005 with ductile iron grating, black, SW 6 mm, locked
|
500 | 150 | 185 | 142 | 290 | 5,0 | 41238 |
* For frequently used areas we recommend FASERFIX SUPER KS Channels shallow (see CIVILS).
The quality of the stainless steel material is according CNS 1.4301.
Accessories
| Length mm | Width mm | Height mm | Weight kg | Item No. Galvanised | Item No. Stainless steel | |
|
Trash box with plastic bucket, slotted grating, SW 9, trafficable, locked
|
500 | 160 | 419 | 4,3 | 40256 | 41209 |
|
Trash box with plastic bucket, mesh grating MW 30/10, trafficable, locked
|
500 | 160 | 419 | 4,9 | 40257 | - |
|
Trash box with plastic bucket and slotted grating SW 6, galvanised, car traffic, locked, length 0,5 m
|
500 | 160 | 419 | 4,6 | 40254 | - |
|
Trash box with plastic bucket, mesh grating MW 30/10, galvanised, class B 125, locked
|
500 | 160 | 419 | 5,5 | 41229 | 41219 |
|
Trash box with plastic bucket and GUGI-Ductile iron mesh grating MW 20/30, black, class C 250, locked
|
500 | 160 | 419 | 6,0 | 40259 | - |
|
Trash box with plastic bucket, ductile iron grating SW 14, black, class C 250, locked
|
500 | 160 | 419 | 6,2 | 40258 | - |
|
Trash box with plastic bucket and ductile iron grating, SW 6 mm, black, cl. C 250 locked
|
500 | 160 | 419 | 6,9 | 41239 | - |
|
Trash box with plastic bucket, ductile iron grating, SW 14, KTL, cl. C 250, locked
|
500 | 160 | 419 | 6,3 | 41252 | - |
|
Trash box with plastic-bucket, with perforated grating, stainless steel, car-traffic, locked
|
500 | 160 | 419 | 4,6 | - | 41249 |
|
Foul air trap, vertical, DN 100
|
- | - | - | 0,6 | 40295 | - |
|
Foul air trap DN 100, inside
|
- | - | - | 0,2 | 40290 | - |
|
End cap closed, made of PE-PP, for type 60
|
- | 147 | 60 | 0,1 | 40284 | - |
|
End cap closed, made of PE-PP, for Type 80
|
- | 147 | 80 | 0,1 | 40291 | - |
|
End cap combined made of PE-PP with outlet DN 70, type 01
|
- | 160 | 135 | 0,1 | 40281 | - |
|
End cap closed for type 010
|
- | 147 | 185 | 0,1 | 40282 | - |
|
End cap combined made of PE-PP with outlet DN 70, type 010
|
- | 149 | 185 | 0,1 | 40283 | - |
|
Drilling of connecting holes DN 100
|
- | - | - | 0,1 | 972 | - |
|
Cutting to length of NW 100
|
- | - | - | 0,1 | 990 | - |
|
Sealing material Sikaflex TS Fast, 600 ml, tubular bag, black
|
- | - | - | 0,6 | 6890 | - |
|
Tubular pistol for Sikaflex TS Fast
|
- | - | - | 1,3 | 6891 | - |
The quality of the stainless steel material is according CNS 1.4301.
