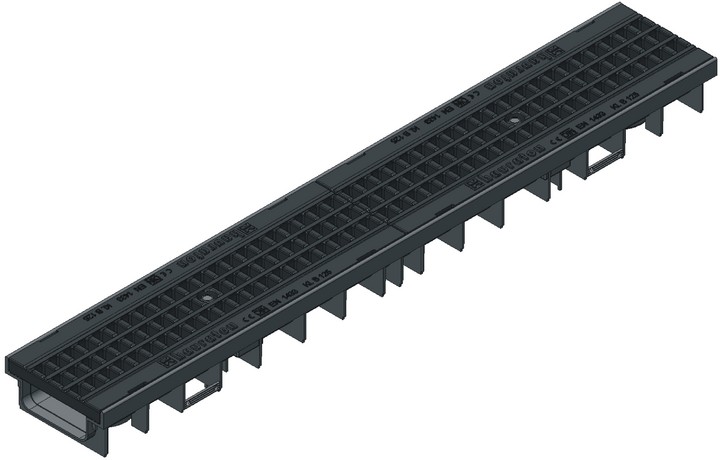

RECYFIX PRO 100
RECYFIX Pro
- Channel made of PE-PP and grating made of high-quality PA-GF (Polyamide)
- drainage system according EN 1433
- leightweight, robust and easy to install
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Intake cross-sect. cm² | Weight kg | Item No. | |
|
Type 75 with GUGI-Grating made of PA-GF, MW 20/30, black
|
1000 | 160 | 75 | 25 | 444 | 2,9 | 47032 |
|
Type 95 with GUGI-Grating made of PA-GF, MW 20/30, black
|
1000 | 160 | 95 | 55 | 444 | 3,6 | 47033 |
|
Type 01 with GUGI-Grating made of PA-GF, MW 20/30, black
|
1000 | 160 | 151 | 92 | 444 | 4,1 | 47035 |
|
Type 0105 with GUGI-Grating made of PA-GF, MW 20/30, black
|
500 | 160 | 151 | 92 | 444 | 2,1 | 47036 |
|
Type 010 with GUGI-Grating made of PA-GF, MW 20/30, black
|
1000 | 160 | 201 | 142 | 444 | 4,7 | 47040 |
|
Type 01005 with GUGI-Grating made of PA-GF, MW 20/30, black
|
500 | 160 | 201 | 142 | 444 | 2,5 | 47041 |
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Intake cross-sect. cm² | Weight kg | Item No. | |
|
Type 75 with FIBRETEC slotted grating, SW 9, black
|
1000 | 160 | 75 | 25 | 372 | 3,4 | 47062 |
|
Type 95 with FIBRETEC slotted grating, SW 9, black
|
1000 | 160 | 95 | 55 | 372 | 3,7 | 47063 |
|
Type 01 with FIBRETEC slotted grating, SW 9, black
|
1000 | 160 | 151 | 92 | 372 | 4,5 | 47055 |
|
Type 0105 with FIBRETEC slotted grating, SW 9, black
|
500 | 160 | 151 | 92 | 372 | 2,3 | 47056 |
|
Type 010 with FIBRETEC slotted grating, SW 9, black
|
1000 | 160 | 201 | 142 | 372 | 4,9 | 47060 |
|
Type 01005 with FIBRETEC slotted grating, SW 9, black
|
500 | 160 | 201 | 142 | 372 | 2,5 | 47061 |
Accessories
| Length mm | Width mm | Height mm | Weight kg | Item No. | |
|
Trash box with galvanised mud bucket and GUGI-Grating made of PA-GF, MW 20/30, black
|
500 | 160 | 438 | 5,8 | 47053 |
|
Trash box with mud bucket and FIBRETEC slotted grating, SW 9, black
|
500 | 160 | 438 | 5,9 | 47054 |
|
End cap Type 75
|
- | 160 | 60 | 0,1 | 47097 |
|
End cap Type 95
|
- | 160 | 95 | 0,1 | 47098 |
|
End cap Type 01
|
- | 160 | 160 | 0,1 | 47091 |
|
End cap closed for type 010
|
- | - | - | 0,1 | 47082 |
|
End cap made of PE-PP closed / with outlet DN 70/100 for type 010
|
- | 149 | 202 | 0,1 | 47093 |
|
Sealing material Sikaflex TS Fast, 600 ml, tubular bag, black
|
- | - | - | 0,6 | 6890 |
|
Tubular pistol for Sikaflex TS Fast
|
- | - | - | 1,3 | 6891 |
