RECYFIX PLUS 100
RECYFIX PLUS
- highly stable
- the steel edge means it is easier to use on many applications including tarmac and also adds to the aesthetics
- an extensive range of channels and gratings up to 300 mm wide gives flexibility in design
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Intake cross-sect. cm² | Weight kg | Item No. Galvanised | Item No. Stainless steel | |
|

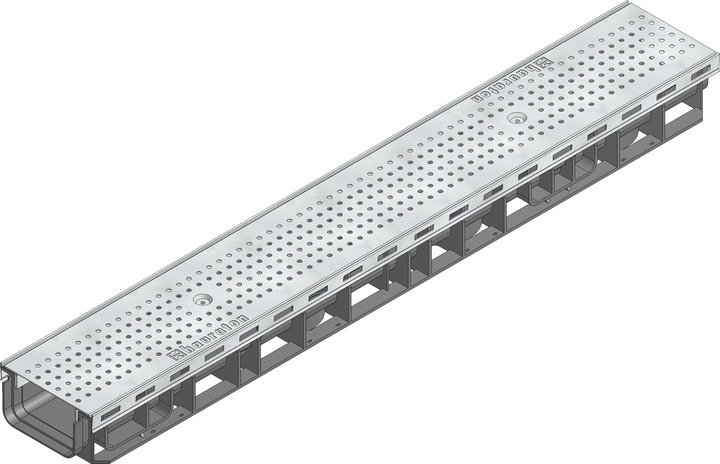

Type 60 with perforated grating "Elegance", stainless steel, locked*
|
1000 | 147 | 60 | 35 | 161 | 3,9 | - | 41444 |
|
Type 80 with perforated grating "Elegance", stainless steel, locked*
|
1000 | 147 | 80 | 55 | 161 | 4,1 | - | 41446 |
|
Type 01 with perforated grating "Elegance", stainless steel, locked
|
1000 | 160 | 135 | 92 | 161 | 5,5 | - | 41440 |
|
Type 010 with perforated grating "Elegance", stainless steel, locked
|
1000 | 147 | 185 | 142 | 161 | 6,4 | - | 41442 |
|
Type 0105 with perforated grating "Elegance", stainless steel, locked
|
500 | 160 | 135 | 92 | 161 | 2,8 | - | 41447 |
|
Type 01005 with perforated grating "Elegance", stainless steel, locked
|
500 | 147 | 185 | 142 | 161 | 3,2 | - | 41448 |
* For frequently used areas we recommend FASERFIX SUPER KS Channels shallow (see CIVILS).
The quality of the stainless steel material is according CNS 1.4301.
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Intake cross-sect. cm² | Weight kg | Item No. Galvanised | Item No. Stainless steel | |
|
Type 60 with slotted grating SW 9, locked*
|
1000 | 147 | 60 | 35 | 280 | 4,0 | 40332 | 41404 |
|
Type 80 with slotted grating SW 9, locked*
|
1000 | 147 | 80 | 55 | 280 | 4,1 | 40337 | 41406 |
|
Type 01 with slotted grating SW 9, locked
|
1000 | 160 | 135 | 92 | 280 | 5,3 | 40344 | 41400 |
|
Type 0105 with slotted grating SW 9, locked
|
500 | 160 | 135 | 92 | 280 | 2,7 | 40347 | 41407 |
|
Type 010 with slotted grating SW 9, locked
|
1000 | 147 | 185 | 142 | 280 | 5,6 | 40339 | 41402 |
|
Type 01005 with slotted grating SW 9, locked
|
500 | 147 | 185 | 142 | 280 | 2,8 | 40341 | 41408 |
|
type 60 with slotted grating, galvanised, SW 80/6, locked
|
1000 | 147 | 60 | 35 | 155 | 3,8 | 40334 | - |
|
Type 80 with slotted grating SW 6, galvanised, car traffic, locked
|
1000 | 147 | 80 | 55 | 155 | 4,0 | 40382 | - |
|
Type 01 with slotted grating SW 6, galvanised, car traffic, locked
|
1000 | 160 | 135 | 92 | 155 | 5,5 | 40327 | 41401 |
|
Type 0105 with slotted grating SW 6, galvanised, car traffic, locked
|
500 | 160 | 135 | 92 | 155 | 2,8 | 40387 | 41413 |
|
Type 010 with slotted grating SW 6, galvanised, car traffic, locked
|
1000 | 160 | 185 | 142 | 155 | 6,4 | 40329 | 41403 |
|
Type 01005 with slotted grating SW 6, galvanised, car traffic, locked
|
500 | 160 | 185 | 142 | 155 | 4,2 | 40389 | 41415 |
|
Type 60 with mesh grating MW 30/10, locked*
|
1000 | 147 | 60 | 35 | 650 | 5,2 | 40333 | - |
|
Type 80 with mesh grating MW 30/10, locked*
|
1000 | 147 | 80 | 55 | 650 | 5,3 | 40338 | - |
|
Type 01 with mesh grating MW 30/10, locked
|
1000 | 160 | 135 | 92 | 650 | 6,5 | 40346 | - |
|
Type 0105 with mesh grating MW 30/10, locked
|
500 | 160 | 135 | 92 | 650 | 3,4 | 40348 | - |
|
Type 010 with mesh grating MW 30/10, locked
|
1000 | 147 | 185 | 142 | 650 | 7,5 | 40340 | - |
|
Type 01005 with mesh grating MW 30/10, locked
|
500 | 147 | 185 | 142 | 650 | 3,8 | 40343 | - |
* For frequently used areas we recommend FASERFIX SUPER KS Channels shallow (see CIVILS).
The quality of the stainless steel material is according CNS 1.4301.
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Intake cross-sect. cm² | Weight kg | Item No. Galvanised | Item No. Stainless steel | |
|
Type 60 with mesh grating MW 30/10, galvanised, locked*
|
1000 | 147 | 60 | 35 | 650 | 6,0 | 41424 | 41414 |
|
Type 80 with mesh grating MW 30/10, galvanised, locked*
|
1000 | 147 | 80 | 55 | 650 | 6,2 | 41426 | 41416 |
|
Type 01 with mesh grating MW 30/10, galvanised, locked
|
1000 | 160 | 135 | 92 | 650 | 7,5 | 41420 | 41410 |
|
Type 0105 with mesh grating MW 30/10, galvanised, locked
|
500 | 160 | 135 | 92 | 650 | 4,0 | 41427 | 41417 |
|
Type 010 with mesh grating MW 30/10, galvanised, locked
|
1000 | 147 | 185 | 142 | 650 | 8,5 | 41422 | 41412 |
|
Type 01005 with mesh grating MW 30/10, galvanised, locked
|
500 | 147 | 185 | 142 | 650 | 4,4 | 41428 | 41418 |
* For frequently used areas we recommend FASERFIX SUPER KS Channels shallow (see CIVILS).
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Intake cross-sect. cm² | Weight kg | Item No. Galvanised | Item No. Stainless steel | |
|
Type 60 with GUGI-Ductile iron mesh grating MW 20/30, black, locked*
|
1000 | 147 | 60 | 35 | 444 | 7,4 | 40359 | 41459 |
|
Type 60 with GUGI-Dutile iron mesh grating, MW 20/30, KTL, locked
|
1000 | 147 | 60 | 35 | 444 | 7,4 | 40397 | - |
|
Type 80 with GUGI-Ductile iron mesh grating MW 20/30, black, locked*
|
1000 | 147 | 80 | 55 | 444 | 7,4 | 40364 | 41464 |
|
Type 60 with ductile iron grating SW 14, black, locked*
|
1000 | 147 | 60 | 35 | 450 | 7,8 | 40362 | 41462 |
|
Type 60 with ductile iron grating, SW 80/14, KTL, locked
|
1000 | 147 | 60 | 35 | 450 | 7,8 | 40394 | - |
|
Type 60 withductile iron gratingSW 6, black, locked*
|
1000 | 147 | 60 | 35 | 290 | 8,6 | 40372 | 41472 |
|
Type 80 with ductile iron grating SW 14, black, locked*
|
1000 | 147 | 80 | 55 | 450 | 8,0 | 40367 | 41467 |
|
Type 80 with ductile iron grating SW 6, black, locked*
|
1000 | 147 | 80 | 55 | 290 | 8,8 | 40377 | 41477 |
|
Type 01 with GUGI-Ductile iron mesh grating MW 20/30, black, locked
|
1000 | 160 | 135 | 92 | 444 | 8,6 | 40360 | 41460 |
|
Type 01 with GUGI-Ductile iron mesh grating MW 20/30, KTL, locked
|
1000 | 160 | 135 | 92 | 444 | 8,6 | 40328 | - |
|
Type 0105 with GUGI-Ductile iron mesh grating MW 20/30, black, locked
|
500 | 160 | 135 | 92 | 444 | 7,4 | 40365 | 41465 |
|
Type 010 with GUGI-Ductile iron mesh grating MW 20/30, black, locked
|
1000 | 147 | 185 | 142 | 444 | 9,5 | 40380 | 41480 |
|
Type 010 with GUGI-Ductile iron mesh grating MW 20/30, KTL, locked
|
1000 | 160 | 185 | 142 | 444 | 9,5 | 40379 | - |
|
Type 0105 with GUGI-Ductile iron mesh grating MW 20/30, black, locked
|
500 | 147 | 185 | 142 | 444 | 7,8 | 40385 | 41485 |
|
Type 01 with ductile iron grating SW 14, locked
|
1000 | 160 | 135 | 92 | 450 | 9,0 | 40361 | 41461 |
|
Type 01 with ductile iron grating SW 6, locked
|
1000 | 160 | 135 | 92 | 290 | 10,0 | 40363 | 41463 |
|
Type 0105 with ductile iron grating SW 14, locked
|
500 | 160 | 135 | 92 | 450 | 7,6 | 40366 | 41466 |
|
Type 0105 with ductile iron grating SW 6, locked
|
500 | 160 | 135 | 92 | 290 | 8,1 | 40368 | 41468 |
|
Type 010 with ductile iron grating SW 14, locked
|
1000 | 147 | 185 | 142 | 450 | 9,9 | 40381 | 41481 |
|
Type 010 with ductile iron grating SW 6, locked
|
1000 | 147 | 185 | 142 | 290 | 10,9 | 40383 | 41483 |
|
Type 0105 with ductile iron grating SW 14, locked
|
500 | 147 | 185 | 142 | 450 | 8,0 | 40386 | 41486 |
|
Type 0105 with ductile iron grating SW 6, locked
|
500 | 147 | 185 | 142 | 290 | 8,5 | 40388 | 41488 |
* For frequently used areas we recommend FASERFIX SUPER KS Channels shallow (see CIVILS).
The quality of the stainless steel material is according CNS 1.4301.
Accessories
| Length mm | Width mm | Height mm | Weight kg | Item No. Galvanised | Item No. Stainless steel | |
|
Trash box with plastic bucket, with slotted grating SW 9, trafficable, locked
|
500 | 160 | 421 | 4,8 | 40353 | 41409 |
|
Trash box with plastic bucket and slotted grating SW 6, galvanised, car traffic, locked, length 0,5 m
|
500 | 160 | 421 | 5,1 | 40384 | 41452 |
|
Trash box with plastic backed, with mesh grating, MW 30/10, trafficable, locked
|
500 | 160 | 421 | 5,4 | 40354 | - |
|
Trash box with plastic-bucket, with mesh grating MW 30/10, class B 125, locked
|
500 | 160 | 421 | 6,2 | 41429 | 41419 |
|
Trash box with plastic bucket, with GUGI-Ductile iron mesh grating MW 20/30, black, class C 250, locked
|
500 | 160 | 421 | 6,6 | 40358 | 41458 |
|
Trash box with plastic bucket, with ductile iron grating SW 14, black, class C 250, locked
|
500 | 160 | 421 | 6,8 | 40356 | 41456 |
|
Trash box with plastic bucket, with ductile iron grating SW 6, black, class C 250, locked
|
500 | 160 | 421 | 7,3 | 40357 | 41457 |
|
Trash box with plastic-bucket, with perforated grating, stainless steel, car-traffic, locked
|
500 | 160 | 421 | 5,1 | - | 41449 |
|
Foul air trap, vertical, DN 100
|
- | - | - | 0,6 | 40295 | - |
|
Foul air trap DN 100, inside
|
- | - | - | 0,2 | 40290 | - |
|
End cap closed, made of PE-PP, for type 60
|
- | 147 | 60 | 0,1 | 40284 | - |
|
End cap closed, made of PE-PP, for Type 80
|
- | 147 | 80 | 0,1 | 40291 | - |
|
End cap combined made of PE-PP with outlet DN 70, type 01
|
- | 160 | 135 | 0,1 | 40281 | - |
|
End cap closed for type 010
|
- | 147 | 185 | 0,1 | 40282 | - |
|
End cap combined made of PE-PP with outlet DN 70, type 010
|
- | 149 | 185 | 0,1 | 40283 | - |
|
Drilling of connecting holes DN 100
|
- | - | - | 0,1 | 972 | - |
|
Cutting to length of NW 100
|
- | - | - | 0,1 | 990 | - |
|
Sealing material Sikaflex TS Fast, 600 ml, tubular bag, black
|
- | - | - | 0,6 | 6890 | - |
|
Tubular pistol for Sikaflex TS Fast
|
- | - | - | 1,3 | 6891 | - |
The quality of the stainless steel material is according CNS 1.4301.
