CC Pressure Systems - pipe Joints
Standard Pressure Pipe Joints

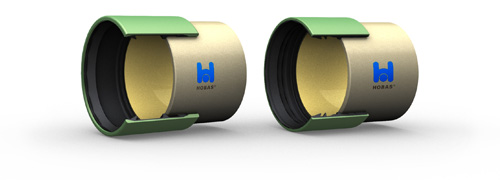

Pipes are generally delivered to the construction site with a pre-mounted coupling. The standard pressure pipe joint is the FWC coupling consisting of a GRP sleeve with a fitted, full width EPDM gasket with single sealing lip. FWC couplings are available for all nominal pressure classes. FWC couplings are available for all nominal pressure ratings, also for axial restrained systems.
| Physical Properties | DN |
| FWC-S coupling | 300 - 3600 mm |
| FWC-A coupling | 150 - 250 mm |
Locked Joint System
Pipes are generally delivered to the construction site with a pre-mounted coupling. Pressure Pipelines with axial forces need to be connected by restrained pipe joint systems which absorb axial loads.
| Physical Properties | DN |
| FWC-A-L coupling | 200 - 300 mm |
| FWC-S-L coupling | 350 - 1200 mm |
Special Couplings
Pressure Pipes are also available with stainless steel couplings and mechanical couplings.
| Physical Properties | |
| Nominal Diameter [DN] | 150 - 3000 mm |
Are you interested in this product? Contact us using form below or contact us directly on e-mail info@mrs.cz or call +420 545 175 844 or +420 602 707 001.
