Overflow Chambers

Overflow Chambers

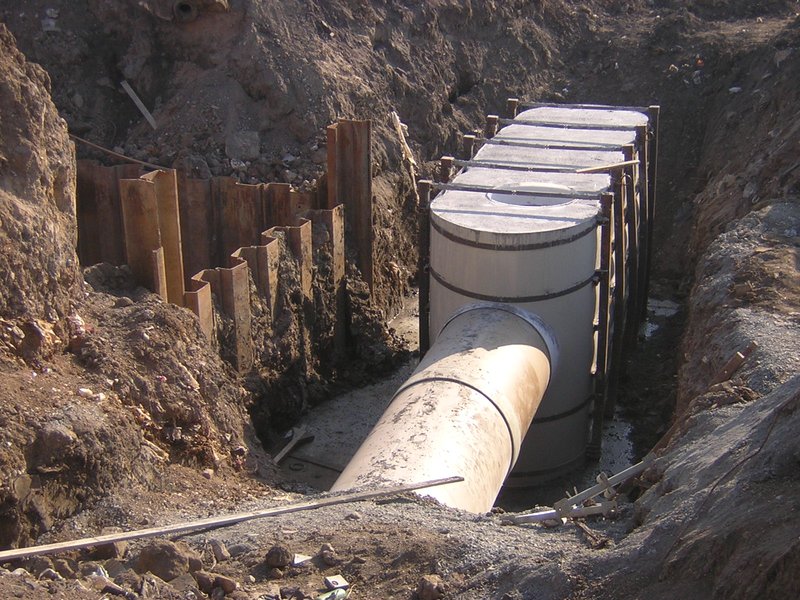

Owerflow chambers are objects in the sewer cannal network that serve the purpose of separating rain water within the system of unified sewerage.



AS-ŠOK

Photo: AS-ŠOK

Overflow slot chambers are especially advantageous for low-gradient terrain configurations that frequently face the problem of backwater in the incoming sewer, with the overflow sewer leading to a recipient. In general, the slot chambers guarantee minimal exceeding of the outflow Qt towards the wastewater treatment plant, so long as the total inflow Qc at the chamber does not exceed 10 to 12 times the limit flow value Ql.

ADVANTAGES

  • High operational reliability
  • Minimal problems with sludge settlement
  • Capturing a substantial amount of pollution from the first flush
  • No backwater is caused in the incoming sewer
  • Possibility to control the required flow Ql

OVERFLOW CHAMBERS OF THE AS-ŠOK RANGE
  Type L B H* hv D d* z* s** Weight Concrete volume
[mm]
 [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg] [m3]
AS–ŠOK 400 2 400 1 300 2 500 600 300 300 500 75 860 3,9
400 100
AS–ŠOK 600 3 400 1 300 2 700 800 500 400 700 125 1 150 6,0
600 150
AS–ŠOK 800 4 600 1 300 2 700 900 800 400 800 200 1 580 10,4
AS–ŠOK 1000 5 400 1 800 2 900 1 100 1 000 500 1 000 250 2 120 16,3
AS–ŠOK 1200 6 550 1 800 2 900 1 300 1 200 600 1 200 300 2 690 18,3

* Maximum values for the particular size type, ** Recommended values for the particular size type



AS-BALOK

Photo: AS-BALOK

Overflow chambers are especially useful in cases when pipeline retention in the incoming sewer can be used to advantage. The AS-BALOK type is based on the principle of the separation of diluted wastewater over an overflow edge. Every type of these chambers is equipped with an integrated slide valve at the outflow to the throttle line, with an adjustable overflow edge. Both these control elements are made of stainless steel 17 240. The minimum limit outflow Ql from the chamber is limited by the control range (DN 150 limits the flow to approx. 15–20 l/s).

ADVANTAGES

  • Reliable separation of rainwater
  • Adjustable height of the overflow edge
  • Control of the required flow Ql
  • Possibility to change direction right in the chamber


OVERFLOW CHAMBERS OF THE AS-BALOK RANGE
Type L B H* hv ho1 ho2 D Weight Concrete volume
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
 [kg] [m3]
AS–BALOK O/400 3 400 1 300 2 400 425 425 200 300, 400 880 4,9
AS–BALOK O/600 4 700 1 800 2 400 450 410 200 500, 600 1 340 8,6
AS–BALOK O/800 5 700 2 470 2 500 450 400 200 800 1 880 14,0
AS-BALOK K/ 600 - 2 470 2 300 450 425 200 300, 400 500, 600 920 4,8
AS-BALOK K/ 800 - 3 670 2 300 450 415 200 800 1 520 8,8

* Standardized structure height (can be adjusted if necessary)
