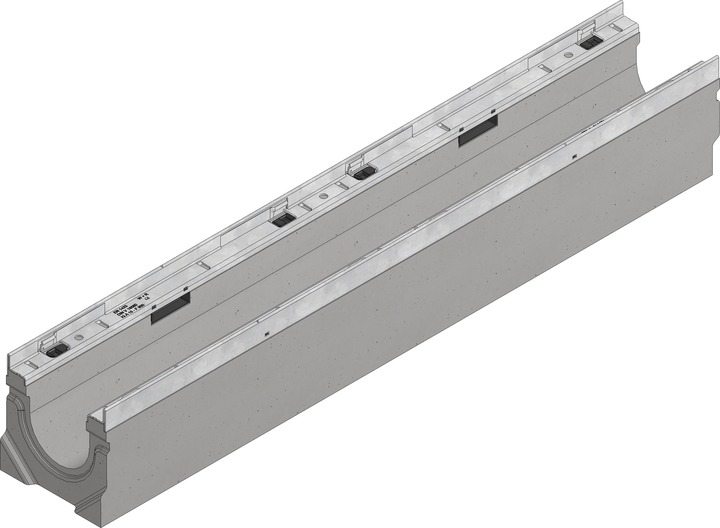

FASERFIX®SUPER KS 100
- the channels are manufactured from a fibre reinforced concrete which makes them extremely strong
- the SIDE-LOCK grating system gives ease of installation saving time and money
- there are many different gratings available giving the range enormous flexibility
1. FASERFIX SUPER KS 100 - Channels
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Weight kg | Item No. galv. angle housing | Item No. st. steel angle housing | |
|
Type 01
|
1000 | 160 | 160 | 92 | 33,2 | 8000 | 8200 |
|
Type 01L with hole*
|
1000 | 160 | 160 | 89 | 34,0 | 8045 | - |
|
Type 05
|
1000 | 160 | 184 | 113 | 37,0 | 8041 | - |
|
Type 010
|
1000 | 160 | 214 | 143 | 40,0 | 8042 | 8242 |
|
Type 010L with hole*
|
1000 | 160 | 214 | 143 | 39,0 | 8046 | - |
|
Type 015
|
1000 | 160 | 244 | 173 | 45,0 | 8043 | 8243 |
|
Type 020
|
1000 | 160 | 274 | 206 | 48,0 | 8044 | 8244 |
|
Type 0105
|
500 | 160 | 160 | 89 | 17,4 | 8049 | 8249 |
|
Type 01005
|
500 | 160 | 214 | 143 | 21,5 | 8050 | - |
*Distance from middle of the hole (DN100) to the end of the channel: 100 mm.
The quality of the stainless steel material is according CNS 1.4301.
2. FASERFIX SUPER KS 100 - Channels shallow
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Weight kg | Item No. galv. angle housing | Item No. st. steel angle housing | |
|
Type 80F
|
1000 | 160 | 80 | 34 | 17,5 | 1106 | 1706 |
|
Type 100F
|
1000 | 160 | 100 | 54 | 20,0 | 1108 | 1708 |
The quality of the stainless steel material is according CNS 1.4301.
3. FASERFIX SUPER KS 100 - Channels with built-in fall 0,6 %
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Weight kg | Item No. galv. angle housing | Item No. st. steel angle housing | |
|
Type 1
|
1000 | 160 | 160 - 166 | 89 | 32,6 | 8001 | 8201 |
|
Type 2
|
1000 | 160 | 166 - 172 | 95 | 33,6 | 8002 | 8202 |
|
Type 3
|
1000 | 160 | 172 - 178 | 101 | 35,0 | 8003 | 8203 |
|
Type 4
|
1000 | 160 | 178 - 184 | 107 | 37,0 | 8004 | 8204 |
|
Type 5
|
1000 | 160 | 184 - 190 | 113 | 37,0 | 8005 | 8205 |
|
Type 6
|
1000 | 160 | 190 - 196 | 119 | 39,0 | 8006 | 8206 |
|
Type 7
|
1000 | 160 | 196 - 202 | 125 | 37,0 | 8007 | 8207 |
|
Type 8
|
1000 | 160 | 202 - 208 | 131 | 38,0 | 8008 | 8208 |
|
Type 9
|
1000 | 160 | 208 - 214 | 137 | 41,0 | 8009 | 8209 |
|
Type 10
|
1000 | 160 | 214 - 220 | 143 | 42,0 | 8010 | 8210 |
|
Type 11
|
1000 | 160 | 220 - 226 | 149 | 43,0 | 8011 | 8211 |
|
Type 12
|
1000 | 160 | 226 - 232 | 155 | 43,5 | 8012 | 8212 |
|
Type 13
|
1000 | 160 | 232 - 238 | 161 | 44,0 | 8013 | 8213 |
|
Type 14
|
1000 | 160 | 238 - 244 | 167 | 44,5 | 8014 | 8214 |
|
Type 15
|
1000 | 160 | 244 - 250 | 173 | 45,5 | 8015 | 8215 |
|
Type 16
|
1000 | 160 | 250 - 256 | 179 | 46,5 | 8016 | 8216 |
|
Type 17
|
1000 | 160 | 256 - 262 | 185 | 47,0 | 8017 | 8217 |
|
Type 18
|
1000 | 160 | 262 - 268 | 191 | 47,5 | 8018 | 8218 |
|
Type 19
|
1000 | 160 | 268 - 274 | 197 | 48,0 | 8019 | 8219 |
|
Type 20
|
1000 | 160 | 274 - 280 | 203 | 48,0 | 8020 | 8220 |
The quality of the stainless steel material is according CNS 1.4301.
Gratings
| Length mm | Width mm | Height mm | Intake cross-sect. cm²/m | Weight kg | Item No. | |
|
Slotted grating SW 10, galvanised
|
1000 | 149 | 20 | 278 | 2,7 | 8161 |
|
Slotted grating SW 10, galvanised
|
500 | 149 | 20 | 278 | 1,3 | 8162 |
|
Slotted grating SW 10, stainless steel
|
1000 | 149 | 20 | 278 | 2,7 | 8163 |
|
Slotted grating SW 10, stainless steel
|
500 | 149 | 20 | 278 | 1,4 | 8164 |
|
Longitudinal slot grating, slot distance 10 mm, stainless steel
|
1000 | 149 | 20 | 727 | 5,8 | 8590 |
|
Longitudinal slot grating, slot distance 10 mm, stainless steel
|
500 | 149 | 20 | 727 | 2,9 | 8591 |
|
Traverse bar grating, stainless steel
|
1000 | 149 | 20 | 902 | 7,5 | 8594 |
|
Traverse bar grating, stainless steel
|
500 | 149 | 20 | 902 | 3,8 | 8595 |
The quality of the stainless steel material is according CNS 1.4301.
| Length mm | Width mm | Height mm | Intake cross-sect. cm²/m | Weight kg | Item No. | |
|
GUGI mesh grating MW 20/30, black, made of high-quality PA-GF (Polyamide)
|
500 | 149 | 20 | 426 | 0,9 | 8099 |
|
Mesh grating MW 30/10, galvanised
|
1000 | 149 | 20 | 716 | 4,0 | 8151 |
|
Mesh grating MW 30/10, galvanised
|
500 | 149 | 20 | 716 | 2,0 | 8152 |
|
Mesh grating MW 30/30, galvanised
|
1000 | 149 | 20 | 878 | 3,0 | 8077 |
|
Mesh grating MW 30/30, galvanised
|
500 | 149 | 20 | 869 | 1,5 | 8078 |
The quality of the stainless steel material is according CNS 1.4301.
| Length mm | Width mm | Height mm | Intake cross-sect. cm²/m | Weight kg | Item No. | |
|
FIBRETEC slotted grating, SW 9 mm, black
|
500 | 149 | 20 | 372 | 1,0 | 8098 |
|
Ductile iron grating, SW 14, black
|
500 | 149 | 20 | 454 | 3,4 | 8064 |
|
Ductile iron grating, SW 14, KTL
|
500 | 149 | 20 | 454 | 3,5 | 8864 |
|
Ductile iron grating, SW 6, black
|
500 | 149 | 20 | 280 | 3,4 | 8068 |
|
Ductile iron grating, SW 14, KTL
|
500 | 149 | 20 | 280 | 3,6 | 8868 |
|
Mesh grating MW 30/10, galvanised
|
1000 | 149 | 20 | 716 | 5,0 | 8154 |
|
Mesh grating MW 30/10, galvanised
|
500 | 149 | 20 | 716 | 2,6 | 8155 |
|
Mesh grating 30/10 stainless steel
|
1000 | 149 | 20 | 776 | 5,2 | 8577 |
|
Mesh grating, stainless steel
|
500 | 149 | 20 | 766 | 2,6 | 8578 |
|
Mesh grating MW 30/30, galvanised
|
1000 | 149 | 20 | 828 | 4,9 | 8073 |
|
Mesh grating MW 30/30, galvanised
|
500 | 149 | 20 | 819 | 2,5 | 8074 |
|
Reinforced slotted grating SW 10, galvanised
|
1000 | 149 | 20 | 281 | 5,4 | 8167 |
|
Reinforced slotted grating SW 10, galvanised
|
500 | 149 | 20 | 281 | 2,7 | 8168 |
|
Reinforced slotted grating SW 10, stainless steel
|
1000 | 149 | 20 | 281 | 5,0 | 8169 |
|
Reinforced slotted grating SW 10, stainless steel
|
500 | 149 | 20 | 281 | 2,5 | 8170 |
|
Perforated grating Ø 6, galvanised
|
1000 | 149 | 20 | 99 | 5,4 | 8171 |
|
Perforaded grating Ø 6, galvanised
|
500 | 149 | 20 | 99 | 2,7 | 8172 |
|
Perforated grating Ø 6, stainless steel
|
1000 | 149 | 20 | 99 | 6,8 | 8177 |
|
Perforated grating Ø 6, stainless steel
|
500 | 149 | 20 | 99 | 3,4 | 8178 |
|
Solid cover, galvanised
|
1000 | 149 | 20 | - | 5,5 | 8191 |
|
Solid cover, galvanised
|
500 | 149 | 20 | - | 2,8 | 8192 |
The quality of the stainless steel material is according CNS 1.4301.
| Length mm | Width mm | Height mm | Intake cross-sect. cm²/m | Weight kg | Item No. | |
|
Ductile iron grating, SW 14, black
|
500 | 149 | 20 | 454 | 3,6 | 8063 |
|
Ductile iron grating, KTL
|
500 | 149 | 20 | 454 | 3,7 | 8863 |
* Not for use across the carriageway of highways or motorways in moving traffic.
| Length mm | Width mm | Height mm | Intake cross-sect. cm²/m | Weight kg | Item No. | |
|
GUGI-Ductile iron mesh grating MW 20/30, black
|
500 | 149 | 20 | 426 | 4,0 | 8079 |
|
GUGI-Ductile iron mesh grating, MW 20x30, KTL
|
500 | 149 | 20 | 426 | 4,3 | 8879 |
|
GUGI-ductile iron mesh grating MW 20/30, galvanised
|
500 | 149 | 20 | 426 | 4,2 | 8080 |
|
Ductile iron grating SW 14, black
|
500 | 149 | 20 | 454 | 4,0 | 8062 |
|
Ductile iron grating, KTL
|
500 | 149 | 20 | 454 | 4,2 | 8862 |
|
Ductile iron grating, SW 6mm, black
|
500 | 149 | 20 | 280 | 4,1 | 8066 |
|
Ductile iron grating, SW 6, KTL
|
500 | 149 | 20 | 280 | 4,0 | 8866 |
|
Mesh grating MW 11/30, galvanised
|
1000 | 149 | 20 | 695 | 11,4 | 8071 |
|
Mesh grating MW 11/30, galvanised
|
500 | 149 | 20 | 695 | 4,0 | 8072 |
|
Mesh grating MW 11/30, stainless steel
|
1000 | 149 | 20 | 695 | 7,0 | 8571 |
|
Mesh grating MW 11/30, stainless steel
|
500 | 149 | 20 | 695 | 4,0 | 8572 |
|
Solid ductile iron grating, black
|
500 | 149 | 20 | - | 4,5 | 8262 |
|
Solid ductile iron grating, KTL (minimum order quantity: 400 pieces, delivery time approx. 4 weeks)
|
500 | 149 | 20 | - | 4,7 | 8962 |
The quality of the stainless steel material is according CNS 1.4301.
| Length mm | Width mm | Height mm | Intake cross-sect. cm²/m | Weight kg | Item No. | |
|
Ductile iron grating SW 14, black
|
500 | 149 | 20 | 454 | 4,5 | 8061 |
|
Ductile iron grating, SW 14, KTL (minimum order quantity: 400 pieces, delivery time approx. 4 weeks)
|
500 | 149 | 20 | 454 | 4,4 | 8861 |
Accessories
| Length mm | Width mm | Height mm | Weight kg | Item No. Galvanised | Item No. Stainless steel | |
|
Trash box with galvanised bucket
|
500 | 160 | 500 | 50,0 | 8053 | - |
|
Trash box with UPVC-bucket
|
500 | 160 | 500 | 49,0 | 8052 | 8252 |
|
Foul air trap DN 100, outside
|
- | - | - | 0,4 | 961 | - |
|
UPVC-outlet DN 100
|
- | - | - | 0,2 | 903 | - |
|
End cap closed, Type 01
|
- | 160 | 160 | 0,4 | 8081 | 8181 |
|
End cap closed, Type 010
|
- | 160 | 214 | 0,5 | 8082 | 8182 |
|
End cap closed, Type 020
|
- | 160 | 274 | 0,6 | 8083 | 8183 |
|
End cap closed, Type 80F
|
- | 160 | 80 | 0,2 | 1181 | 1681 |
|
End cap closed, Type 100F
|
- | 160 | 100 | 0,2 | 1183 | 1683 |
|
End cap with horizontal UPVC-outlet DN 100, Type 010
|
- | 160 | 214 | 0,6 | 8087 | 8186 |
|
End cap with horizontal UPVC-outlet DN 100, Type 020
|
- | 160 | 274 | 0,7 | 8089 | 8187 |
|
Cutting to length of NW 100
|
- | - | - | 0,1 | 990 | - |
|
Mitre cuts NW 100 (price per cut, two cuts necessary)
|
- | - | - | 0,1 | 995 | - |
|
Drilling of connecting holes DN 70
|
- | - | - | 0,1 | 971 | - |
|
Drilling of connecting holes DN 100
|
- | - | - | 0,1 | 972 | - |
|
Inserting of PVC union connectors DN 70*
|
- | - | - | 0,1 | 981 | - |
|
Inserting of PVC union connectors DN 100 *
|
- | - | - | 0,1 | 982 | - |
|
Sealing material Masterflex 700 FR Gun Grade, cartridge 450 ml**
|
- | - | - | 1,0 | 19000 | - |
|
Primer Masterflex 700 A SP, capacity 1000 ml
|
- | - | - | 1,2 | 20000 | - |
|
Primer Masterflex 700 FE (steel), capacity 1000 ml
|
- | - | - | 1,1 | 19950 | - |
|
Toolkit for sealing material Masterflex 700 FR Gun Grade
|
- | - | - | 3,1 | 10025 | - |
|
Fixing-system EP, empty pipe in the channel bottom, (2 pieces per metre)
|
- | - | - | 0,1 | 703 | - |
|
Steelbars for fixing system EP (2 pieces per metre)
|
- | - | - | 0,1 | 704 | - |
|
Installation advise FASERFIX SUPER KS 100 channel
|
- | - | - | 1,0 | 705 | - |
* We can additionally insert SML- or PE-HD outlets on appointment
** Consumption for channel type 020: approx. 65 ml per joint.
The quality of the stainless steel material is according CNS 1.4301.
