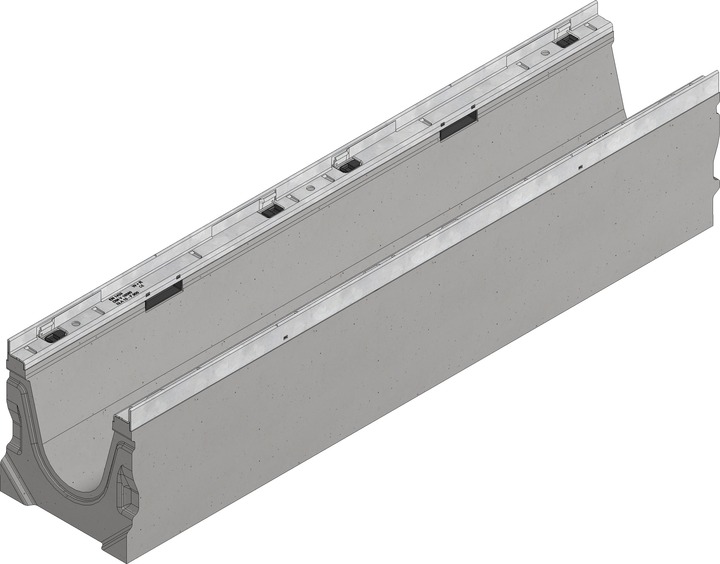

FASERFIX SUPER KS 150

FASERFIX SUPER KS 150
  • the channels are manufactured from a fibre reinforced concrete which makes them extremely strong
  • the SIDE-LOCK grating system gives ease of installation saving time and money
  • there are many different gratings available giving the range enormous flexibility



1. FASERFIX SUPER KS 150 - Channels
  Length mm Width mm Height mm Drainage cross-sect. cm² Weight kg Item No. galv. angle housing Item No. st. steel angle housing
Type 01
 1000 210 220 185 54,0 11000 11500
Type 010
 1000 210 265 245 61,0 11042 11542
Type 020
 1000 210 315 312 68,0 11044 11544
Type 0105
 500 210 220 185 27,0 11049 11549
The quality of the stainless steel material is according CNS 1.4301.


2. FASERFIX SUPER KS 150 - Channels shallow
  Length mm Width mm Height mm Drainage cross-sect. cm² Weight kg Item No. galv. angle housing Item No. st. steel angle housing
Type 110F
 1000 210 110 74 29,0 2121 2521
Type 150F
 1000 210 150 134 35,0 2122 2522
Type 200F
 1000 210 200 208 42,5 2123 2523
The quality of the stainless steel material is according CNS 1.4301.


3. FASERFIX SUPER KS 150 - Channels with built-in fall 0,5 %
  Length mm Width mm Height mm Drainage cross-sect. cm² Weight kg Item No. galv. angle housing Item No. st. steel angle housing
Type 1
 1000 210 220 - 225 186 53,0 11001 11501
Type 2
 1000 210 225 - 230 196 54,0 11002 11502
Type 3
 1000 210 230 - 235 203 56,0 11003 11503
Type 4
 1000 210 235 - 240 211 55,0 11004 11504
Type 5
 1000 210 240 - 245 218 56,0 11005 11505
Type 6
 1000 210 245 - 250 226 57,0 11006 11506
Type 7
 1000 210 250 - 255 233 59,0 11007 11507
Type 8
 1000 210 255 - 260 241 59,0 11008 11508
Type 9
 1000 210 260 - 265 248 59,0 11009 11509
Type 10
 1000 210 265 - 270 254 60,0 11010 11510

The quality of the stainless steel material is according CNS 1.4301.



Gratings

FASERFIX SUPER KS 150 - Gratings, class C 250
  Length mm Width mm Height mm Intake cross-sect. cm²/m Weight kg Item No.
Ductile iron grating SW 20, black
 500 199 20 631 5,0 11064
Ductile iron grating, SW 20, KTL
 500 199 20 631 5,3 11264
Mesh grating MW 30/10, galvanised
 1000 199 20 1105 7,2 11075
Mesh grating MW 30/10, galvanised
 500 199 20 1105 3,7 11076
Mesh grating MW 30/10, stainless steel
 1000 199 20 1105 8,0 11575
Mesh grating MW 30/10, stainless steel
 500 199 20 1105 4,0 11576
Mesh grating MW 30/30, galvanised
 1000 199 20 1240 5,9 11073
Mesh grating MW 30/30, galvanised
 500 199 20 1240 3,4 11074
The quality of the stainless steel material is according CNS 1.4301.


FASERFIX SUPER KS 150 - Gratings, class D 400*
  Length mm Width mm Height mm Intake cross-sect. cm²/m Weight kg Item No.
Ductile iron grating SW 20, black
 500 199 20 629 5,3 11063
Ductile iron grating, SW 20, KTL
 500 199 20 629 5,2 11263
* Not for use across the carriageway of highways or motorways in moving traffic.


FASERFIX SUPER KS 150 - Gratings, class E 600
  Length mm Width mm Height mm Intake cross-sect. cm²/m Weight kg Item No.
GUGI-Ductile iron mesh grating MW 20/30, black
 500 199 20 716 8,4 11068
GUGI-Ductile iron mesh grating, MW 20x30, KTL
 500 199 20 716 7,8 11268
Ductile iron grating SW 9, black
 500 199 20 557 6,7 11066
Ductile iron grating, SW 9 mm, KTL (minimum order quantity: 400 pieces, delivery time approx. 4 weeks)
 500 199 20 557 6,7 11266
Mesh grating MW 11/30, galvanised
 1000 199 20 981 18,8 11071
Mesh grating MW 11/30 , galvanised
 500 199 20 981 9,4 11072
Mesh grating MW 11/30, stainless steel
 1000 199 20 981 21,0 11571
Mesh grating MW 11/30, stainless steel
 500 199 20 981 11,0 11572
Solid ductile iron grating, black
 500 199 20 - 6,9 11362
The quality of the stainless steel material is according CNS 1.4301.


FASERFIX SUPER KS 150 - Gratings, class F 900
  Length mm Width mm Height mm Intake cross-sect. cm²/m Weight kg Item No.
Ductile iron grating SW 20, black
 500 199 20 626 7,2 11061



Accessories

FASERFIX SUPER KS 150 - Accessories
  Length mm Width mm Height mm Weight kg Item No. Galvanised Item No. Stainless steel
Trash box with galvanised bucket
 500 210 600 67,2 11052 11552
Foul air trap DN 150
 - - - 2,0 960 -
PVC - connection DN 150
 - - - 0,5 906 -
End cap closed, type 01
 - 210 220 0,7 11081 11581
End cap closed, type 010
 - 210 265 0,8 11082 11582
End cap closed, type 020
 - 210 315 1,0 11083 11583
End cap closed, type 110F
 - 210 110 0,4 2181 2681
End cap closed, type 150F
 - 210 150 0,5 2182 2682
End cap closed, type 200F
 - 210 200 0,6 2183 2683
End cap with horizontal UPVC - outlet DN 150, type 010
 - 210 265 1,0 11087 11587
End cap with horizontal UPVC - outlet DN 150, type 020
 - 210 315 1,1 11088 11588
Cutting to length of NW 150
 - - - 0,1 991 -
Mitre cuts NW 150 (price per cut, two cuts necessary)
 - - - 0,1 996 -
Drilling of connecting holes DN 150
 - - - 0,1 973 -
Inserting of PVC union connectors DN 150*
 - - - 0,1 983 -
Sealing material Masterflex 700 FR Gun Grade, cartridge 450 ml**
 - - - 1,0 19000 -
Primer Masterflex 700 A SP, capacity 1000 ml
 - - - 1,2 20000 -
Primer Masterflex 700 FE (steel), capacity 1000 ml
 - - - 1,1 19950 -
Toolkit for sealing material Masterflex 700 FR Gun Grade
 - - - 3,1 10025 -
Fixing-system EP, empty pipe in the channel bottom, (2 pieces per metre)
 - - - 0,1 703 -
Steelbars for fixing system EP (2 pieces per metre)
 - - - 0,1 704 -

* We can additionally insert SML- or PE-HD outlets on appointment
** Consumption for channel type 020: approx. 94 ml per joint.
The quality of the stainless steel material is according CNS 1.4301.
