FASERFIX SUPER 400

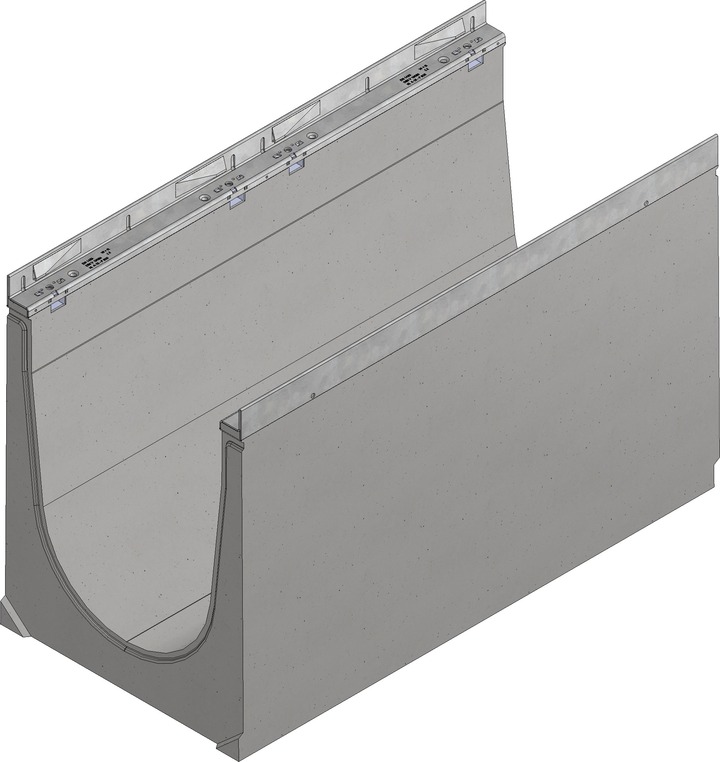

FASERFIX®SUPER
- the channels are manufactured from a fibre reinforced concrete which makes them extremely strong
- the SIDE-LOCK grating system gives ease of installation saving time and money
- there are many different gratings available giving the range enormous flexibility
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Weight kg | Item No. | |
|
Type 01
|
1000 | 490 | 540 | 1398 | 246,0 | 4111 |
|
Type 01H
|
1000 | 490 | 630 | 1758 | 265,0 | 4116 |
Gratings
| Length mm | Width mm | Height mm | Intake cross-sect. cm²/m | Weight kg | Item No. | |
|
Ductile iron grating SW 20, black
|
500 | 477 | 40 | 1618 | 25,0 | 4163 |
* Not for use across the carriageway of highways or motorways in moving traffic.
| Length mm | Width mm | Height mm | Intake cross-sect. cm²/m | Weight kg | Item No. | |
|
GUGI-Ductile iron mesh grating MW 20/30, black
|
500 | 477 | 40 | 1634 | 30,0 | 4168 |
|
Solid ductile iron grating, black
|
500 | 477 | 40 | - | 32,0 | 4362 |
| Length mm | Width mm | Height mm | Intake cross-sect. cm²/m | Weight kg | Item No. | |
|
Ductile iron grating SW 20, black
|
500 | 477 | 40 | 1618 | 38,7 | 4161 |
Accessories
| Length mm | Width mm | Height mm | Weight kg | Item No. | |
|
Trash box element with galvanised mud bucket for type 01, 1.0 m
|
1000 | 490 | 1090 | 670,0 | 4120 |
|
Trash box element with galvanised mud bucket for type 01 H, 1.0 m
|
1000 | 490 | 1160 | 690,0 | 4125 |
|
End cap closed, galvanised, Type 01
|
- | 490 | 540 | 4,9 | 4091 |
|
End cap closed, galvanised, Type 01H
|
- | 490 | 630 | 5,6 | 4092 |
|
End cap with horizontal UPVC-outlet DN 200, galvanised, Type 01
|
- | 490 | 540 | 5,2 | 4093 |
|
End cap with horizontal UPVC-outlet DN 200, galvanised, Typ 01H
|
- | 490 | 630 | 5,2 | 4097 |
|
Cutting to length of NW 400
|
- | - | - | 0,1 | 985 |
|
Mitre cuts NW 400 (price per cut, two cuts necessary)
|
- | - | - | 0,1 | 949 |
|
Drilling of connecting holes DN 200
|
- | - | - | 0,1 | 974 |
|
Inserting of PVC union connectors DN 200*
|
- | - | - | 0,1 | 984 |
|
Sealing material Masterflex 700 FR Gun Grade, cartridge 450 ml**
|
- | - | - | 1,0 | 19000 |
|
Primer Masterflex 700 A SP, capacity 1000 ml
|
- | - | - | 1,2 | 20000 |
|
Primer Masterflex 700 FE (steel), capacity 1000 ml
|
- | - | - | 1,1 | 19950 |
|
Toolkit for sealing material Masterflex 700 FR Gun Grade
|
- | - | - | 3,1 | 10025 |
|
Fixing-system EP, empty pipe in the channel bottom, (2 pieces per metre)
|
- | - | - | 0,1 | 703 |
|
Steelbars for fixing system EP (2 pieces per metre)
|
- | - | - | 0,1 | 704 |
* We can additionally insert SML- or PE-HD outlets on appointment
** Consumption for channel type 01H: approx. 172 ml per joint.
