FASERFIX SUPER 150

FASERFIX SUPER 150

FASERFIX®SUPER


  • the channels are manufactured from a fibre reinforced concrete which makes them extremely strong
  • the SIDE-LOCK grating system gives ease of installation saving time and money
  • there are many different gratings available giving the range enormous flexibility

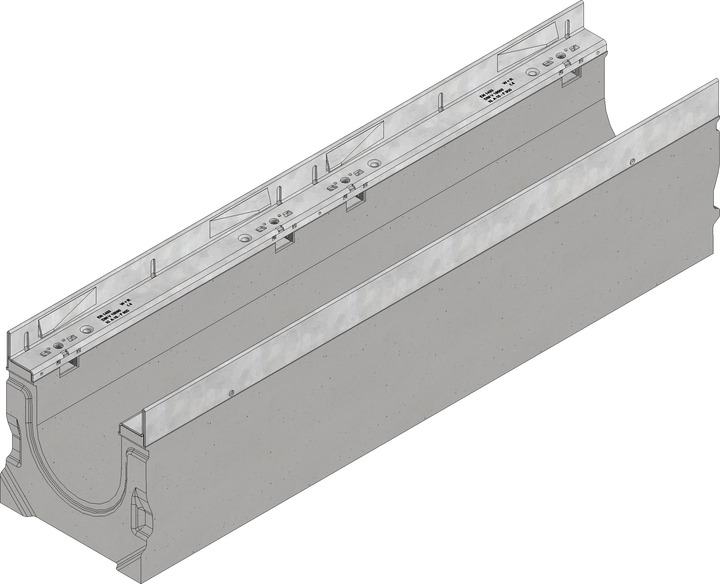

FASERFIX SUPER 150 - Channels with galvanised angle housing
  Length mm Width mm Height mm Drainage cross-sect. cm² Weight kg Item No.
Type 01
 1000 240 255 212 77,0 2000
Type 010
 1000 240 309 289 89,0 2042
Type 020
 1000 240 369 383 103,0 2044
Type 0105
 500 240 255 212 37,0 2049


FASERFIX SUPER 150 - Channels angular
  Length mm Width mm Height mm Drainage cross-sect. cm² Weight kg Item No.
Type 01 E (no stock, minimum order quantity 200 m)
 1000 240 255 223 80,0 2105
Type 010 E (no stock, minimum order quantity 200 m)
 1000 240 309 301 93,5 2106
Type 020 E (no stock, minimum order quantity 200 m)
 1000 240 369 387 105,0 2107



Gratings

FASERFIX SUPER 150 - Gratings, class E 600
  Length mm Width mm Height mm Intake cross-sect. cm²/m Weight kg Item No.
GUGI-Ductile iron mesh grating, MW 20/30, black
 500 227 40 628 11,5 2068
GUGI-Ductile iron mesh grating, MW 20/30, KTL (minimum order quantity: 400 pieces, delivery time approx. 4 weeks)
 - - - - 12,0 2868
Solid ductile iron grating, black
 500 227 40 - 10,7 2262


FASERFIX SUPER 150 - Gratings, class F 900
  Length mm Width mm Height mm Intake cross-sect. cm²/m Weight kg Item No.
Ductile iron grating SW 20, black
 500 227 40 710 9,8 2061
Ductile iron grating SW 20, KTL (minimum order quantity: 400 pieces, delivery time approx. 4 weeks)
 500 225 40 710 9,9 2861
