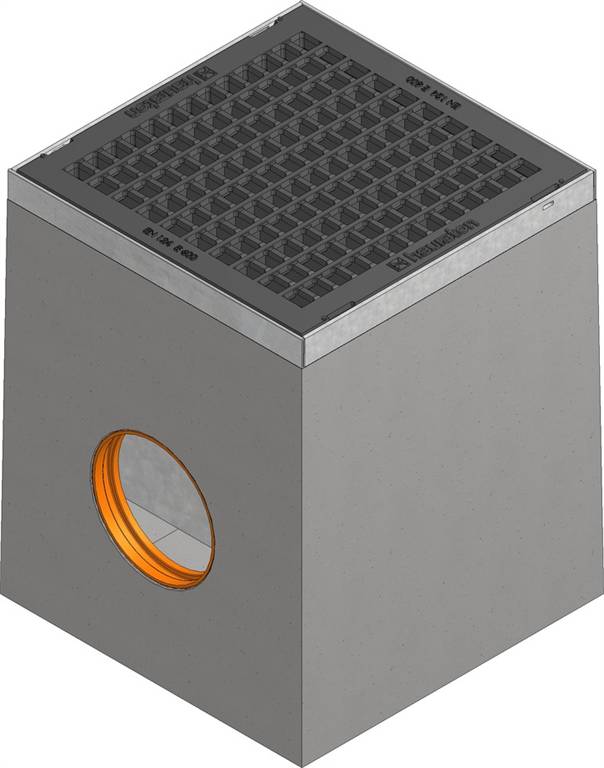

FASERFIX POINT SUPER 40/40
FASERFIX POINT
- has a protective steel frame which protects against corrosion
- the GUGI ductile iron grating gives it a high drainge capacity
- the range is comlemented by an integrated KG sleeve, a foul air trap and a mud bucket
| Length mm | Width mm | Height mm | Weight kg | Item No. | |
|
One piece with GUGI-Ductile iron mesh grating MW 20/30, black
|
400 | 400 | 500 | 93,1 | 4700 |
|
Two piece with GUGI-Ductile iron mesh grating MW 20/30, black
|
400 | 400 | 988 | 154,1 | 4800 |
|
One piece with GUGI-ductile iron mesh grating MW 20/30, galvanised
|
400 | 400 | 500 | 94,0 | 4720 |
|
Two piece with GUGI-Ductile iron mesh grating MW 20/30, galvanised
|
400 | 400 | 988 | 155,0 | 4820 |
|
Extension part
|
400 | 400 | 488 | 58,5 | 4825 |
Point drainage tested according to EN 124.
For FASERFIX POINT the installation advices as for FASERFIX SUPER are analogous valid.
The gratings are secured with the boltless locking system SIDE-LOCK.
