DRAINFIX®TWIN

  • very large storage volume
  • flexible installation alignment due to variable combinations
  • combination of seepage and retention possible

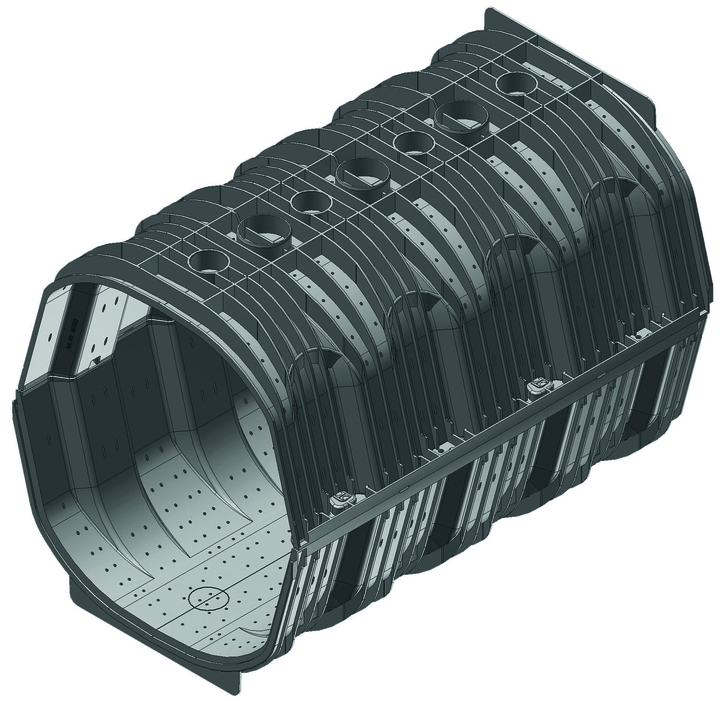

DRAINFIX TWIN - Seepage element made of PP
  Length mm Width mm Height mm Weight kg Item No.
TWIN 1/1, black (2 parts, 506 l)*
 1155 780 860 23,0 96550
TWIN 0/0, black (2 parts, 506 l), closed*
 1155 780 860 23,0 96610
TWIN 1/0, black (2 parts, 506 l), upper part closed*
 1155 780 860 23,0 96650
TWIN 0/1, inspection, black (2 parts, 506 l), lower part closed*
 1155 780 860 23,0 96660
TWIN 1, black (1 part, 253 l)
 1155 780 430 10,6 96500
TWIN 0, black (1 part, 253 l), closed
 1155 780 430 11,5 96600





DRAINFIX - Rainwater treatment plants
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
Type 10
 1000 1000 2345 150 1555 1530 82,0 96450
Type 12
 1200 1200 2480 150 1608 1583 120,0 96460
Type 15
 1500 1500 2704 200 2198 2173 230,0 96470
Type 20
 2000 2000 2804 200 1917 1892 280,0 96480
Type 25
 2500 2500 2654 200 1767 1742 340,0 96490

All DRAINFIX - Rainwater treatment plants (ATV) are also applicable for DRAINFIX BLOC.



DRAINIFX - System shaft 300/1800 mm
  Length mm Width mm Height mm Weight kg Item No.
with filter unit, with PE-cover, in- and outlet DN 200
 - - 1800 14,4 97800
with filter unit, with ductile iron cover, cl. A 15, in- and outlet DN 200
 - - 1800 21,7 97825
with filter unit, with ductile iron cover, cl. B 125, in- and outlet DN 200
 - - 1800 49,7 97850
System shaft module, inlet / outlet DN 200, single
 - - - 0,2 97907
System shaft module, cover, DN 200, single
 - - - 0,2 97908





Accessories

DRAINFIX TWIN - Accessories
  Length mm Width mm Height mm Weight kg Item No.
End cap, black
 192 780 430 2,5 96530
Geotextile from PP-fleece GRK3 roll dimensions 2 x 200, 200 g/m²
 - - - 80,0 96120
Geotextile form PP-fleece GRK3, sold by 2 m² per metre cutting-off of the the roll
 - - - 0,2 96130
