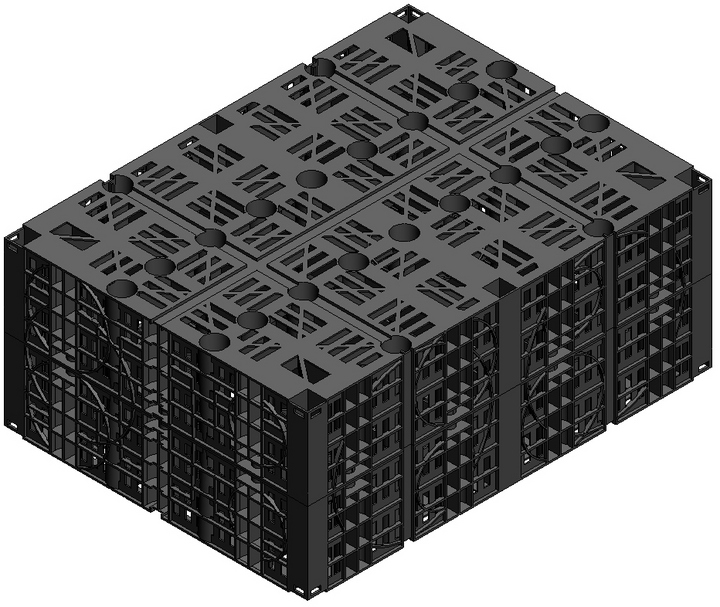

DRAINFIX BLOC
DRAINFIX BLOC
- infiltration ditch with high storage capacity
- system for high installation depths, durable and permanent assured
- proofed static loading capacity up to SLW 60 for installation under driven areas
| Length mm | Width mm | Height mm | Weight kg | Item No. | |
|
Size 1, Black, made of PP, volume 146 l
|
800 | 600 | 330 | 11,4 | 96025 |
|
Size 2, Black, made of PP, volume 292 l
|
1200 | 800 | 330 | 23,0 | 96000 |
|
Supplementary for access with camera (for Size 2)
|
1200 | 800 | 330 | 2,4 | 96150 |
| Length mm | Width mm | Height mm | DN in-/outLet mm | HE H inlet mm | HA H outlet mm | Weight kg | Item No. | |
|
Type 20
|
6000 | 1500 | 1650 | 300 | 1100 | 1000 | 1500,0 | 96400 |
|
Type 50
|
9000 | 2500 | 2650 | 300 | 2100 | 2000 | 4900,0 | 96410 |
|
Type 100
|
17000 | 2500 | 2650 | 300 | 2100 | 2000 | 8900,0 | 96420 |
All DRAINFIX - Rainwater treatment plants (ATV) are also applicable for DRAINFIX TWIN.
| Length mm | Width mm | Height mm | Weight kg | Item No. | |
|
Inlet and distribution shaft SUPER, 3-piece with closed ductile iron cover, black, class E 600
|
510 | 390 | 1250 | 289,0 | 96250 |
|
Multifunction discharge shaft SUPER, 3-piece, with closed ductile iron cover, black, class E 600
|
510 | 390 | 1250 | 284,0 | 96350 |
| Length mm | Width mm | Height mm | Weight kg | Item No. | |
|
with filter unit, with PE-cover, in- and outlet DN 200
|
- | - | 1800 | 14,4 | 97800 |
|
with filter unit, with ductile iron cover, cl. A 15, in- and outlet DN 200
|
- | - | 1800 | 21,7 | 97825 |
|
with filter unit, with ductile iron cover, cl. B 125, in- and outlet DN 200
|
- | - | 1800 | 49,7 | 97850 |
|
System shaft module, inlet / outlet DN 200, single
|
- | - | - | 0,2 | 97907 |
|
System shaft module, cover, DN 200, single
|
- | - | - | 0,2 | 97908 |
Accessories
| Length mm | Width mm | Height mm | Weight kg | Item No. | |
|
Connection adaptor for DRAINFIX BLOC Size 1, red
|
73 | 46 | 64 | 0,1 | 96115 |
|
Connection adaptor for DRAINFIX BLOC Size 2, green
|
35 | 35 | 100 | 0,1 | 96110 |
|
Geotextile from PP-fleece GRK3 roll dimensions 2 x 200, 200 g/m²
|
- | - | - | 80,0 | 96120 |
|
Geotextile form PP-fleece GRK3, sold by 2 m² per metre cutting-off of the the roll
|
- | - | - | 0,2 | 96130 |
