Decontamination basins

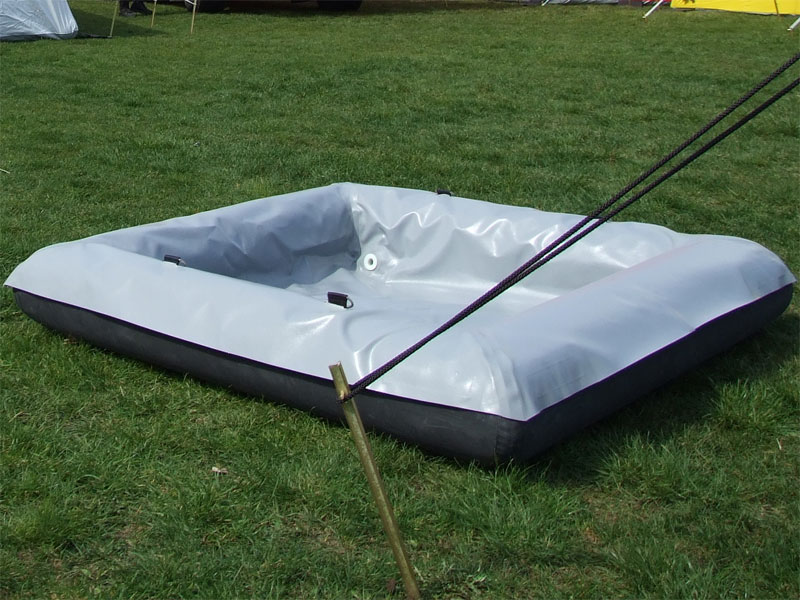

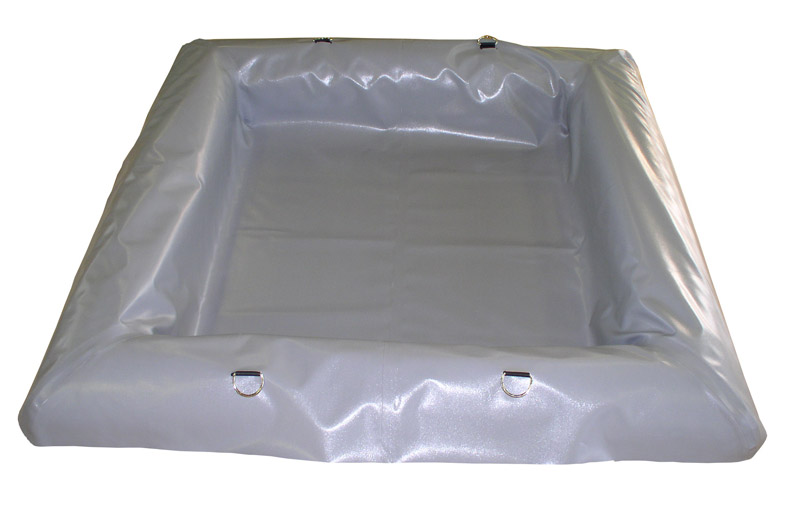

Basins with an inflatable frame are designed for a quick use in case of an accident to retain used water after decontamination of people. Bigger types are designed for a mass decontamination, or decontamination and washing of vehicles. The basins can be used further as additional accessory with inflatable rescue tents and showers. The basin frame consists of inflatable chambers with diameter 230 mm, the bottom made from high-strength material is fixed to the frame.

The basin is equipped with inflatable and safety relief valves and, according to the customer´s wish, an opening in the bottom can be performed to drain the used water.

Specifications

• Designed to retain used water after decontamination of people, in case of an accident, bigger types are designed for a mass decontamination of people or decontamination and washing of technical equipment.

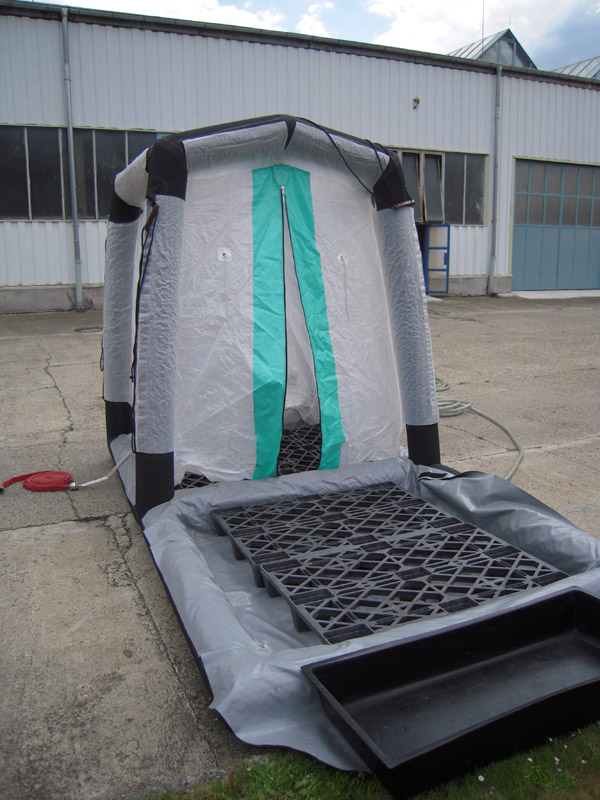

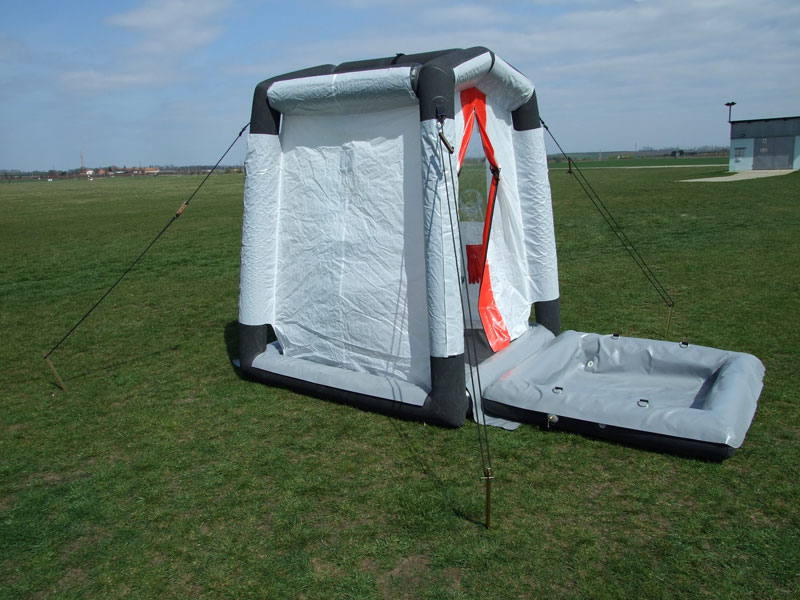

• Additional equipment to inflatable tents and showers
• Long lifetime with only minimum maintenance and repair required
• Selection from several sizes
• Easy handling and transport
• Low weight

• Quick readiness for use
• Inflatable with pressure air or electrical blower
• Quick-coupling device to connect the pressure air
• Safety relief valve

• One-chamber inflatable frame
• Bottom made from a high-strength material with anti-skid treatment
• Exchangeable basin
• On request, a water drain can be built-in

Technical parameters

Type	Internal useful area (m2)	External dimensions (mm)	Internal dimensions (mm)	Packed dimensions (mm)	Weight (kg)	Layout of the pool
1,5 × 1,5	1	1500 × 1500 × 230	1040 × 1040 × 230	600 × 400 × 250	6
2 × 2	2,3	2000 × 2000 × 230	1540 × 1540 × 230	700 × 500 × 300	10
2,5 × 2,5	4	2500 × 2500 × 230	2040 × 2040 × 230	700 × 500 × 300	10
3 × 3	6	3000 × 3000 × 230	2540 × 2540 × 230	800 × 500 × 300	12
3,5 × 1,5	3	3500 × 100 × 230	3040 × 1040 × 230	700 × 500 × 300	10
4 × 4	12,5	4000 × 4000 × 230	3540 × 3540 × 230	800 × 500 × 350	18
4,1 × 2,5	7	4100 × 2500 × 230	3640 × 2040 × 230	800 × 500 × 300	13
4,5 × 2,5	8	4500 × 2500 × 230	4040 × 2040 × 230	800 × 500 × 350	15
5 × 3	11	5000 × 3000 × 230	4540 × 2540 × 230	800 × 500 × 400	18
22,4 × 5,4	110	22400 × 5400 × 200	22000 × 5000 × 200		115

Note: Data in the chart are indicative.

Colours available

Bottom	Inflatable tubes

Material used

Bottom – PES textile double-sided PVC coating, highly abrasion resistant, water-proof, with anti-skid treatment, surface weight approx. 520 g/m²
Inflatable chambers – PAD fabric double-sided rubber mixture coating, high-strength, abrasion resistant, air-proof

Simple decontamination set

Use:

Applicable during decontamination of a rescuer from NBC (nuclear, biologic, chemical) substances wearing a protective suit. Primary it is designed for fire trucks with a tank as decontamination means, in a packaging, in accordance with the Regulation No. 49/2003 Sb. on technical conditions of fire extinguishing equipment. Packed dimensions 55 × 35 × 25 cm, weight 17 kg.

Standard delivery includes:

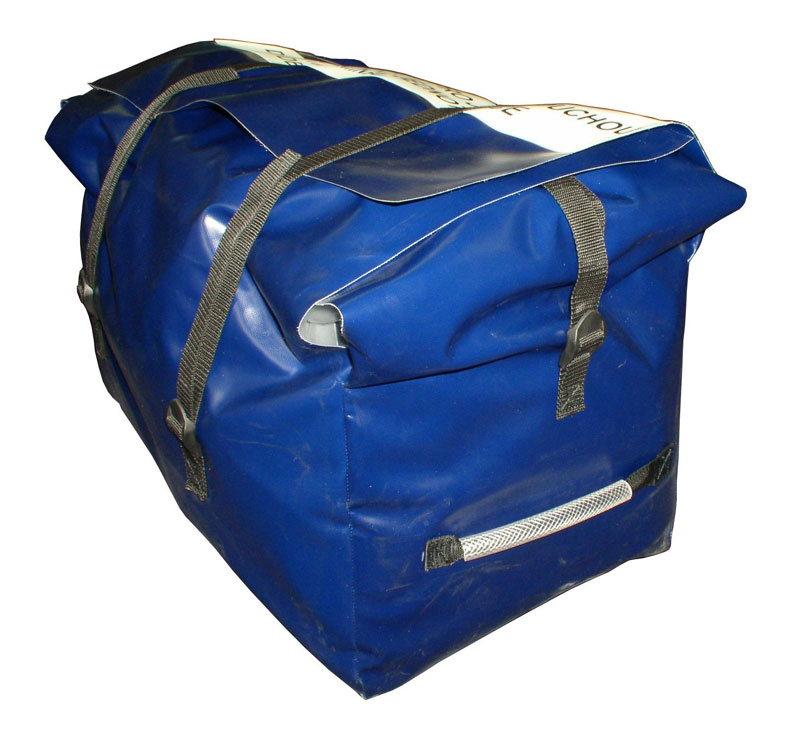

1. transport bag with inscription Decontamination set

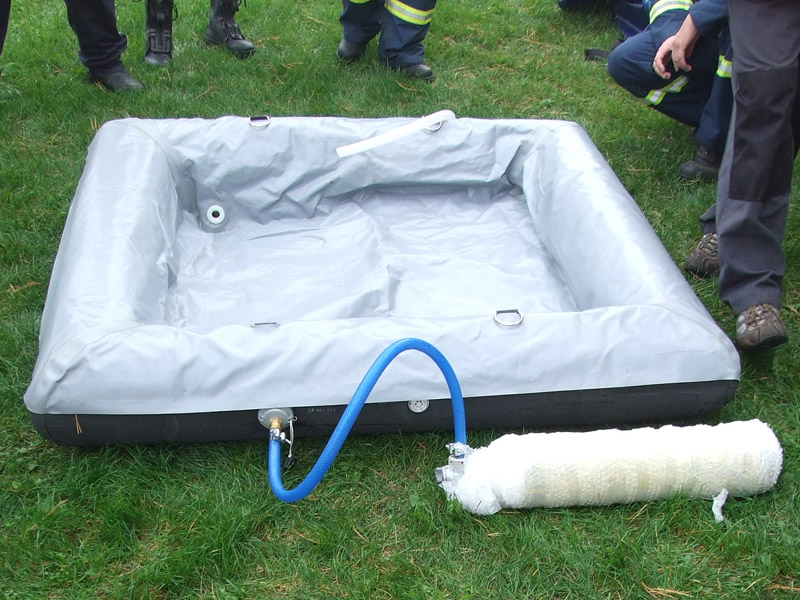

2. inflatable decontamination basin, dimensions when inflated 2 × 2 × 0.23 m (w × l × h) with GEKA connection in the drain
3. 2 pairs of gloves, PVC GLOVES STANDARD 153213
4. 5 pcs red plastic bags for used components, transparent
5. goggles
6. hose to discharge water out of basin
7. hand-held rose with nozzle equipped with D-connection
8. respirator
9. hand-held garden sprayer – volume 5 l
10. yellow – cover Ø 14.6 cm, for disinfectant
    2 vessels of different colours with cover and legend:
11. red – cover Ø 4.5 cm, for contaminated solution
12. Packaging does not include any decontamination means (Persteril, Savo Prim) ATTENTION - not included!
13. plastic measuring vessel for the preparation of the decontamination solution
14. disposable protective suit Tyvek, size XL
15. disposable anti-chemical protective suit Tychem F, size XL
