AQUAFIX SEPARATORS SERIES G

AQUAFIX SEPARATORS SERIES G

AQUAFIX

  • highest cleaning performances
  • modern materials for all demands
  • up to NS 250 l/sec.

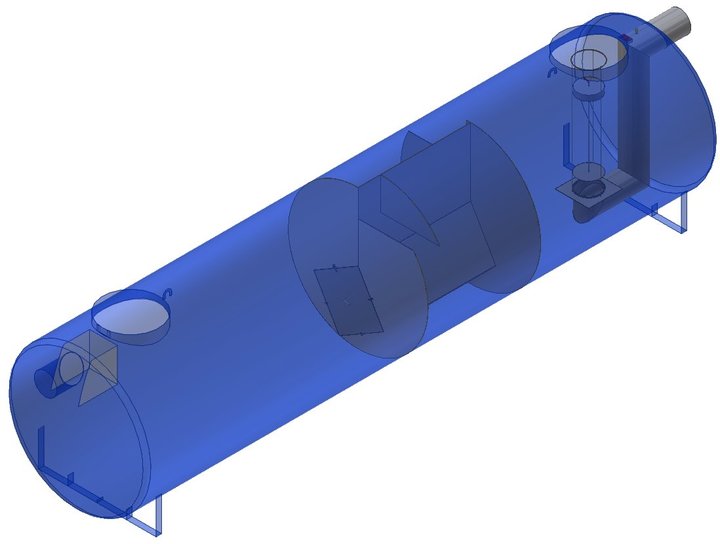

AQUAFIX - SKG Coalescence separator with sludge trap
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
SKG 015
 3860 1250 1400 200 1000 950 1400,0 181015
SKG 020
 4960 1250 1400 200 1000 950 1600,0 181020
SKG 025
 4550 1600 1750 200 1350 1300 1800,0 181025
SKG 030
 5200 1600 1750 200 1350 1300 1950,0 181030
SKG 035
 5600 1600 1750 200 1350 1300 2000,0 181035
SKG 040
 6020 1600 1750 200 1350 1300 2250,0 181040
SKG 045
 5150 2000 2150 300 1650 1600 2850,0 181045
SKG 050
 5450 2000 2150 300 1650 1600 2950,0 181050
SKG 060
 6040 2000 2150 300 1650 1600 3100,0 181060
SKG 065
 6350 2000 2150 300 1650 1600 3300,0 181065
SKG 070
 6750 2000 2150 300 1650 1600 3400,0 181070
SKG 075
 7200 2000 2150 300 1650 1600 3600,0 181075
SKG 080
 7660 2000 2150 300 1650 1600 3800,0 181080
SKG 090
 8240 2000 2150 300 1650 1600 4000,0 181090
SKG 100
 9100 2000 2150 300 1650 1600 4300,0 181100
SKG 120
 8100 2500 2650 400 2050 2000 5200,0 181120
SKG 130
 8100 2500 2650 400 2050 2000 5250,0 181130
SKG 140
 8440 2500 2650 400 2050 2000 5550,0 181140
SKG 150
 8440 2500 2650 400 2050 2000 5560,0 181150
SKG 160
 9740 2500 2650 400 2050 2000 6050,0 181160
SKG 170
 9740 2500 2650 400 2050 2000 6100,0 181170
SKG 180
 10540 2500 2650 400 2050 2000 6500,0 181180
SKG 200
 11300 2500 2650 400 2050 2000 6700,0 181200
SKG 250
 14100 2500 2650 400 2050 2000 7650,0 181250





AQUAFIX - SKGBP Coalescence separator with sludge trap and bypass
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
SKGBP 015
 4700 1500 1400 300 920 820 1700,0 182015
SKGBP 020
 5825 1500 1400 300 920 820 1900,0 182020
SKGBP 025
 5235 1900 1750 400 1150 1000 2350,0 182025
SKGBP 030
 6300 1900 1750 400 1150 1000 2700,0 182030
SKGBP 035
 6300 1900 1750 400 1150 1000 2750,0 182035
SKGBP 040
 7200 1900 1750 400 1150 1000 3050,0 182040
SKGBP 045
 5400 2200 2150 400 1550 1450 3100,0 182045
SKGBP 050
 6000 2200 2150 500 1450 1300 3300,0 182050
SKGBP 055
 6300 2200 2150 500 1450 1300 3500,0 182055
SKGBP 060
 6300 2200 2150 500 1450 1300 3600,0 182060
SKGBP 065
 7200 2200 2150 500 1450 1300 4050,0 182065
SKGBP 070
 8000 2200 2150 500 1450 1300 4250,0 182070
SKGBP 075
 8000 2200 2150 500 1450 1300 4300,0 182075
SKGBP 080
 8500 2200 2150 500 1450 1300 4500,0 182080
SKGBP 090
 7300 2800 2650 600 1850 1650 5450,0 182090
SKGBP 100
 7300 2800 2650 600 1850 1650 5600,0 182100
SKGBP 120
 8800 2800 2650 600 1850 1700 6150,0 182120
SKGBP 130
 9600 2800 2650 800 1650 1400 6300,0 182130
SKGBP 140
 10300 2900 2650 800 1650 1400 6700,0 182140
SKGBP 150
 11000 2900 2650 800 1650 1400 6900,0 182150
SKGBP 160
 11500 2900 2650 800 1650 1400 7450,0 182160
SKGBP 170
 12000 2900 2650 800 1650 1400 7650,0 182170
SKGBP 180
 12700 2900 2650 800 1650 1400 7950,0 182180
SKGBP 200
 13900 2900 2650 800 1650 1400 8650,0 182200
SKGBP 250
 17200 2900 2650 800 1650 1400 10400,0 182250





AQUAFIX - SKG2BP Coalescence separator with sludge trap and bypass with increased flow
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
SKG2BP 015
 5000 1700 1400 400 820 670 2300,0 184015
SKG2BP 020
 6300 1700 1400 400 820 670 2700,0 184020
SKG2BP 025
 5100 2100 1750 400 1150 1000 2800,0 184025
SKG2BP 030
 7100 2100 1750 500 1050 850 3250,0 184030
SKG2BP 035
 7100 2100 1750 500 1050 850 3300,0 184035
SKG2BP 040
 8200 2100 1750 500 1050 850 3750,0 184040
SKG2BP 045
 6000 2500 2150 500 1450 1300 3800,0 184045
SKG2BP 050
 6200 2500 2150 500 1450 1300 3900,0 184050
SKG2BP 055
 7400 2600 2150 600 1350 1150 4500,0 184055
SKG2BP 060
 7400 2600 2150 600 1350 1150 4600,0 184060
SKG2BP 065
 8200 2600 2150 600 1350 1150 4650,0 184065
SKG2BP 070
 9100 2600 2150 600 1350 1150 5050,0 184070
SKG2BP 075
 9100 2600 2150 600 1350 1150 5100,0 184075
SKG2BP 080
 11900 2900 2150 800 1150 850 6400,0 184080
SKG2BP 090
 9000 3300 2650 800 1650 1400 6700,0 184090
SKG2BP 100
 9000 3300 2650 800 1650 1400 6800,0 184100
SKG2BP 120
 10700 3300 2650 800 1650 1400 7500,0 184120
SKG2BP 130
 11500 3300 2650 800 1650 1400 7900,0 184130
SKG2BP 140
 13000 3500 2650 1000 1450 1100 8000,0 184140
SKG2BP 160
 14500 3500 2650 1000 1450 1100 8900,0 184160
SKG2BP 170
 15000 3500 2650 1000 1450 1100 9500,0 184170
SKG2BP 180
 15800 3500 2650 1000 1450 1100 10350,0 184180
SKG2BP 200
 11800 3900 3050 1000 1850 1500 10800,0 184200
SKG2BP 250
 13700 3900 3050 1000 1850 1450 11200,0 184250



AQUAFIX - SKGL Coalescence separator with increased cleaning performance
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
SKGL 015
 4660 1250 1400 200 1000 950 1500,0 186015
SKGL 020
 6260 1250 1400 200 1000 950 2500,0 186020
SKGL 025
 5720 1600 1750 200 1350 1300 3000,0 186025
SKGL 030
 6420 1600 1750 200 1350 1300 3350,0 186030
SKGL 035
 7020 1600 1750 200 1350 1300 3500,0 186035
SKGL 040
 7620 1600 1750 200 1350 1300 3800,0 186040
SKGL 045
 6440 2000 2150 300 1650 1600 3350,0 186045
SKGL 050
 6840 2000 2150 300 1650 1600 3450,0 186050
SKGL 060
 7440 2000 2150 300 1650 1600 3700,0 186060
SKGL 065
 7740 2000 2150 300 1650 1600 3850,0 186065
SKGL 070
 8340 2000 2150 300 1650 1600 4050,0 186070
SKGL 075
 8940 2000 2150 300 1650 1600 4200,0 186075
SKGL 080
 9540 2000 2150 300 1650 1600 4500,0 186080
SKGL 090
 10240 2000 2150 300 1650 1600 4700,0 186090
SKGL 100
 11340 2000 2150 300 1650 1600 4800,0 186100
SKGL 120
 9940 2500 2650 400 2050 2000 6100,0 186120
SKGL 130
 9940 2500 2650 400 2050 2000 6200,0 186130
SKGL 140
 10740 2500 2650 400 2050 2000 6500,0 186140
SKGL 150
 10740 2500 2650 400 2050 2000 6550,0 186150
SKGL 160
 11940 2500 2650 400 2050 2000 7500,0 186160
SKGL 170
 11940 2500 2650 400 2050 2000 7600,0 186170
SKGL 180
 12940 2500 2650 400 2050 2000 7700,0 186180
SKGL 200
 14240 2500 2650 400 2050 2000 7800,0 186200
SKGL 250
 17740 2500 2650 400 2050 2000 8500,0 186250
