AQUAFIX®SEPARATORS FROM POLYPROPYLEN - SERIES H

AQUAFIX®SEPARATORS FROM POLYPROPYLEN - SERIES H

AQUAFIX

  • highest cleaning performances
  • modern materials for all demands
  • up to NS 250 l/sec.

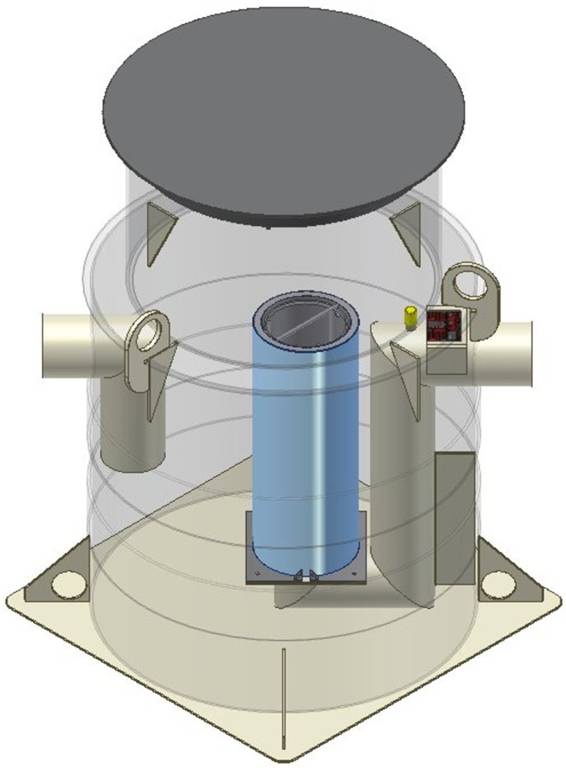

AQUAFIX - KPP Coalescence separator
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
KPP 04
 700 700 1044 100 706 681 30,0 283504
KPP 06
 850 850 1500 150 706 681 57,0 283506
KPP 10
 1000 1000 1496 150 702 677 67,0 283510
KPP 15
 1240 1240 1749 200 853 828 144,0 283515
KPP 20
 1500 1500 1749 200 853 828 161,0 283520



AQUAFIX - SKPP Coalescence separator with sludge trap
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
SKPP 04/0400
 1000 1000 1840 100 1071 1046 67,0 284004
SKPP 06/0600
 1000 1000 2345 150 1551 1526 82,0 284006
SKPP 06/1200
 1240 1240 2480 150 1604 1579 120,0 284106
SKPP 10/1000
 1240 1240 2480 150 1604 1579 120,0 284010
SKPP 10/2500
 1500 1500 3074 150 2198 2173 160,0 284110
SKPP 15/1500
 1500 1500 2704 200 1808 1783 230,0 284015
SKPP 15/3000
 2000 2000 2804 200 1908 1883 280,0 284115
SKPP 20/2000
 2000 2000 2446 200 1550 1525 256,0 284020
SKPP 20/4000
 2500 2500 2654 200 1758 1733 340,0 284120



AQUAFIX - SKBPPP Coalescence separator with sludge trap and bypass
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
SKBPPP 10/1000
 2500 2500 2374 300 1110 1060 320,0 283610
SKBPPP 10/1000
 2500 2500 2772 300 1510 1460 350,0 283610
SKBPPP 15/1500
 2500 2500 2674 400 1317 1267 350,0 283615
SKBPPP 15/1500
 2500 2500 3074 400 1717 1667 380,0 283615



AQUAFIX - SK2BPPP Coalescence separator with sludge trap and doublebypass
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
SK2BPPP 10/1000
 2500 2500 2474 400 1167 1117 335,0 283010
SK2BPPP 10/1000
 2500 2500 2774 400 1467 1417 340,0 283010
SK2BPPP 15/1500
 2500 2500 2774 500 1367 1317 360,0 283015
SK2BPPP 15/1500
 2500 2500 3074 500 1667 1617 380,0 283015



AQUAFIX - SPP Sludge trap
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
SPP 0600/06
 1000 1000 1675 150 881 856 54,0 284306
SPP 1000/10
 1240 1240 1727 150 935 910 78,0 284310
SPP 1500/15
 1500 1500 1804 200 990 965 128,0 284315
SPP 2000/20
 1500 1500 2097 200 1283 1258 140,0 284320
SPP 2500/10
 1500 1500 2449 150 1655 1630 160,0 284325
SPP 2500/20
 1500 1500 2097 200 1283 1258 160,0 284326



AQUAFIX - FPP Grease separator
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
FPP 02
 1000 1000 1694 150 825 800 60,0 285002
FPP 04
 1240 1240 1998 150 1127 1102 83,0 285004
FPP 07
 1500 1500 2224 200 1278 1251 160,0 285007
FPP 10
 2000 2000 2011 200 1078 1053 196,0 285010
FPP 15/20
 2500 2500 2219 200 1278 1253 270,0 285020



AQUAFIX - SFPP Grease separator with sludge trap
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
SFPP 02/0200
 1000 1000 2035 150 1166 1141 66,0 285302
SFPP 02/0400
 1000 1000 2305 150 1436 1411 71,0 285303
SFPP 04/0400
 1200 1200 2307 150 1436 1411 90,0 285304
SFPP 04/0800
 1240 1240 2654 150 1803 1778 98,0 285305
SFPP 07/0700
 1500 1500 2654 200 1708 1683 180,0 285307
SFPP 07/1400
 1500 1500 3104 200 2158 2133 200,0 285308
SFPP 10/1000
 2000 2000 2116 200 1183 1158 203,0 285310
SFPP 10/2000
 2000 2000 2466 200 1533 1508 227,0 285311
