AQUAFIX®SEPARATORS FROM CONCRETE SERIES H

AQUAFIX®SEPARATORS FROM CONCRETE SERIES H

AQUAFIX

  • highest cleaning performances
  • modern materials for all demands
  • up to NS 250 l/sec.

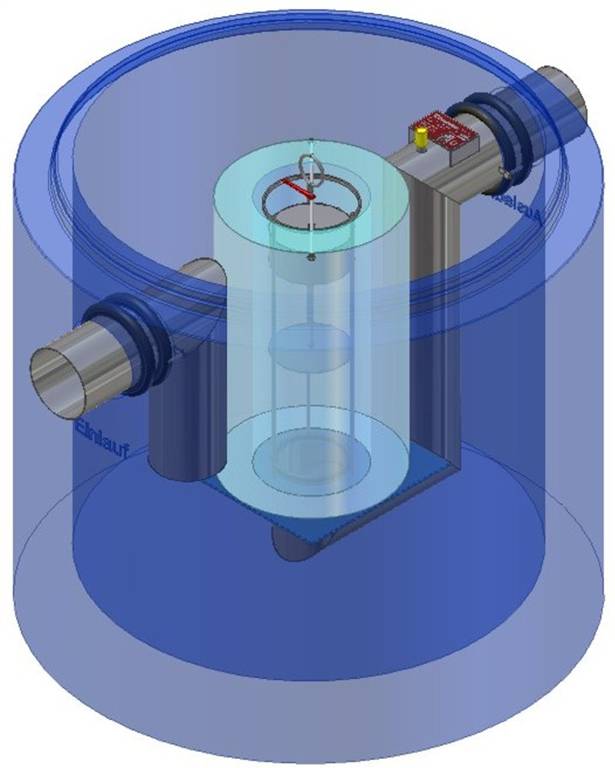

AQUAFIX - K Coalescence separator
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
K 10 H
 1240 1240 1120 150 900 875 1515,0 103100H
K 20 H
 1740 1740 1320 200 1000 975 2726,0 103200H



AQUAFIX - SK Coalescence separator with sludge trap
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
SK 04/0650 H
 1240 1240 1970 100 1750 1725 2410,0 176043H
SK 10/2500 H
 1740 1740 2470 150 2200 2175 4479,0 176105H



AQUAFIX - S Sludge trap
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
S 10/02500 H
 1740 1740 1920 150 1650 1625 3607,0 101105H
S 20/02500 H
 1740 1740 1920 200 1600 1575 3596,0 101205H



AQUAFIX - SF Grease separator with sludge trap
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
SF 04/0400 H
 1240 1240 1570 150 1220 1170 1968,0 178042H
SF 10/1000 H
 1740 1740 1770 150 1420 1370 3388,0 178104H



Are you interested in this product? Contact us using form below or contact us directly on e-mail info@mrs.cz or call +420 545 175 844 or +420 602 707 001.
