AQUAFIX®SEPARATORS FROM CONCRETE SERIES C

AQUAFIX®SEPARATORS FROM CONCRETE SERIES C

AQUAFIX

  • highest cleaning performances
  • modern materials for all demands
  • up to NS 250 l/sec.

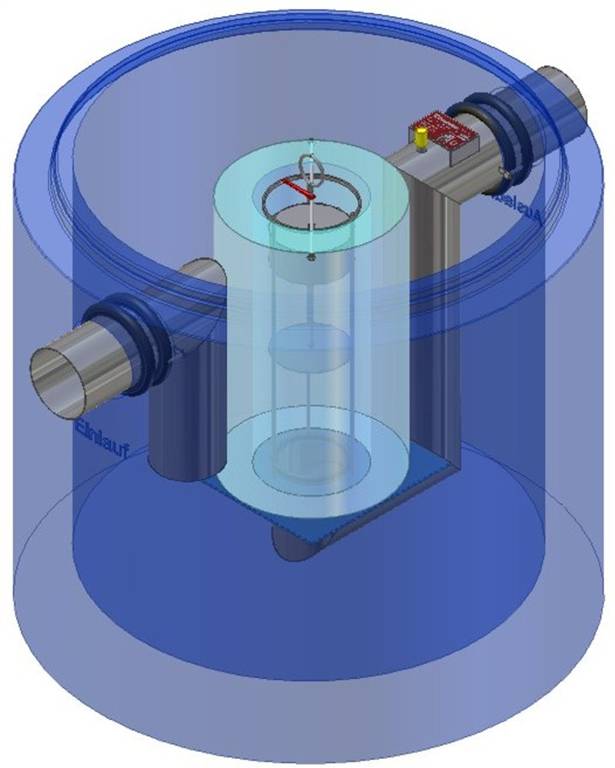

AQUAFIX - K Coalescence separator
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
K 03 C
 1240 1240 1315 100 900 875 1500,0 103030C
K 06 C
 1240 1240 1315 110 900 875 1500,0 103060C
K 10 C
 1240 1240 1315 150 845 820 1500,0 103100C
K 15 C
 1240 1240 1515 200 1000 975 1700,0 103150C
K 20 C
 1840 1840 1565 200 1000 975 2650,0 103200C
K 30 C
 2340 2340 1865 250 1200 1175 5000,0 103300C
K 40 C
 2740 2740 2320 250 1675 1650 6800,0 103400C
K 50 C
 2740 2740 2520 250 1900 1875 7300,0 103500C



AQUAFIX - K2BP Coalescence separator with double-bypass
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
K2BP 20 C
 2740 2740 2320 400 1300 1275 6800,0 174020C
K2BP 40 C
 2740 2740 2520 500 1450 1425 7300,0 174040C
K2BP 60 C
 2740 2740 2820 600 1600 1575 7750,0 174060C



AQUAFIX - SK Coalescence separator with sludge trap
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
SK 04/0400 C
 1240 1240 1915 150 1550 1525 2500,0 176043C
SK 10/1000 C
 1840 1840 1965 150 1500 1475 4500,0 176104C
SK 10/2000 C
 1840 1840 2465 150 2000 1975 5600,0 176105C
SK 10/3000 C
 1840 1840 2965 150 2500 2475 6050,0 176107C
SK 15/1500 C
 2740 2740 2120 200 1575 1550 9350,0 176154C
SK 15/3000 C
 2740 2740 2420 200 1875 1850 7050,0 176155C
SK 15/5000 C
 2740 2740 2720 200 2175 2150 7750,0 176157C
SK 20/2000 C
 2740 2740 2320 200 1625 1600 9800,0 176203C
SK 20/4000 C
 2740 2740 2720 200 2125 2100 7750,0 176204C
SK 30/3000 C
 2740 2740 2420 250 1800 1775 7050,0 176305C
SK 40/4000 C
 2740 2740 2920 250 2350 2325 8250,0 176406C
SK 50/5000 C
 2740 2740 3020 250 2450 2425 11550,0 176505C



AQUAFIX - SK2BP Coalescence separator with sludge trap and double-bypass
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
SK2BP 10/1000 C
 2740 2740 2620 400 1600 1550 7300,0 175010C
SK2BP 15/1500 C
 2740 2740 2820 400 1800 1750 7750,0 175015C



AQUAFIX - S Sludge trap
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
S 00650/03 C
 1240 1240 1715 100 1275 1225 1900,0 101043C
S 01300/03 C
 1840 1840 1165 100 1350 1300 2300,0 101064C
S 02500/10 C
 1840 1840 1865 150 1650 1625 3400,0 101105C
S 03500/10 C
 1840 1840 2365 150 1200 1150 4200,0 101106C
S 05000/10 C
 2340 2340 1965 150 1700 1650 4900,0 101107C
S 07500/10 C
 2740 2740 2320 150 1870 1820 6750,0 101108C
S 10000/10 C
 2740 2740 2920 150 2500 2450 7250,0 101109C
S 02500/20 C
 1840 1840 1865 200 1600 1575 7700,0 101205C
S 05000/20 C
 2340 2340 1965 200 1650 1600 4900,0 101207C
S 08000/20 C
 2740 2740 2520 200 1900 1850 6750,0 101208C
S 10000/20 C
 2740 2740 2920 200 2400 2350 7250,0 101209C
S 05000/30 C
 2340 2340 1965 250 1600 1550 4900,0 101307C
S 07500/30 C
 2740 2740 2320 250 1770 1720 6750,0 101308C
S 10000/30 C
 2740 2740 2920 250 2400 2350 7250,0 101309C
